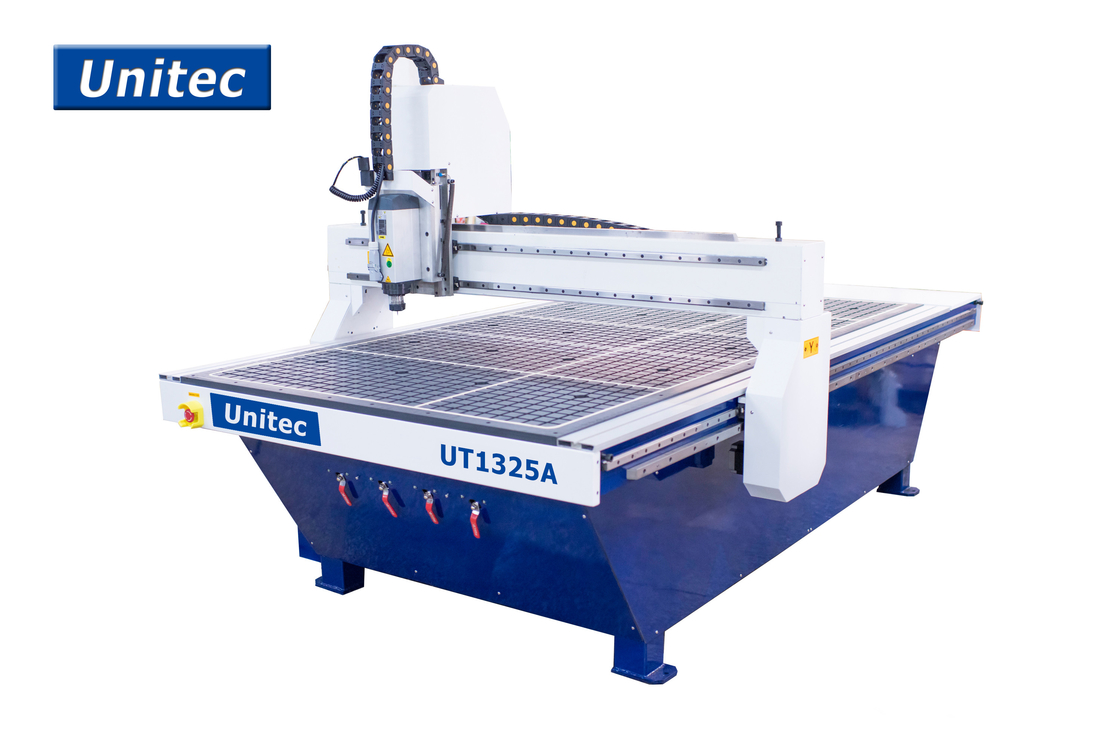

70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine

70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine
70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine 70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine 70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine

Large Image :  70000mm/Min UT1325A 2000kg Woodworking CNC Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
X/Y/Z Working Area: 1300*2500*200mm /1220*2440*200mm Reposition Accuracy: 0.05mm
Spindle Speed: 0-18000rpm/min Or 0-24000rpm/m Max.travelling Speed: 70000mm/min
Max.working Speed: 25000mm/min Weight: 2000kg
High Light:

70000mm/min Woodworking CNC Router Machine

,

UT1325A Woodworking CNC Router Machine

,

2000kg cnc wood carving machine

UT1325A 1325 MDF Wood Cnc Router Machine , Router Cnc Machine



A. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.

B. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.

C. Yaskawa servo system and reducer to make sure speed and stability. YASKAWA servo motors runs smoothly, no vibration phenomenon even in low speed and has overload ability,servo is more reliable and better than stepper.

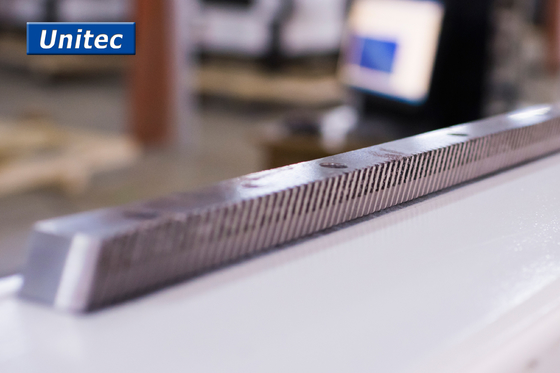

D. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.

E. Well compatibility: CAD/CAM designing software, such as type3/ucancam/artcam, etc.

F. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.

G: Manual/automatic oil-injection system allows the machine maintenance mush easier.



1. The cnc router machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.

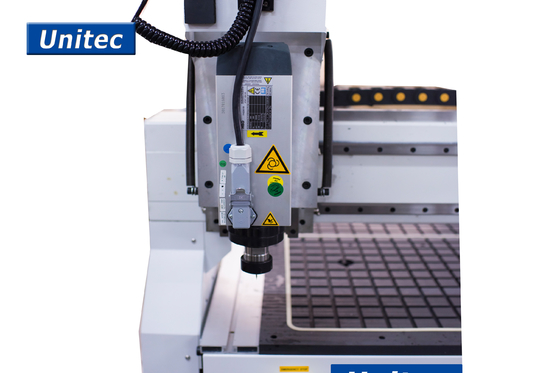

3. cnc router using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.

4. High-performance driven motor to ensure that the machines high speed and accuracy.

5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred





Cnc Router Woodworking Machine main Specifications





X/Y/Z working area 1300*2500*200mm /1220*2440*200mm
reposition accuracy 0.05mm
spindle power 4.5kw,6kw,9kw air cooling spindle (optional)
spindle speed 0-18000rpm/min or 0-24000rpm/m
driver motor servo motor and driver
machine structure heavy steel welded structure
X/Y structure Guide rack,Taiwan csk square rail
Z structure taiwan TBI ball screw
table structure vacuum table
max.travelling speed 70000mm/min
max.working speed 25000mm/min
command code HPGL/G code//Wei Tai/artcam
working voltage AC 380V/50HZ
Operating system syntec control system
Weight 2000kg
