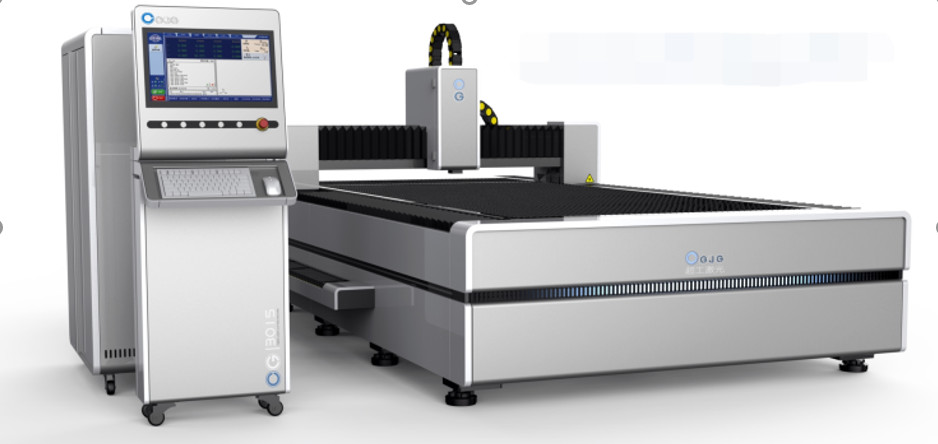

Industry 1530 1000W CNC Metal Laser Cutter For Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1530FL100 |
|
Detail Information |
|||
| Processing Area: | 1500mm*3000mm | Fiber Power: | Raycus 1000W |
|---|---|---|---|
| Cooling Mode: | Water Cooling And Protection System | Resetting Positioning Accuracy: | ±0.01mm |
| Max Acceleration: | 1G | Compatible Software: | CorelDraw/AutoCAD/Photoshop/AI … |
| Whole Machine Size: | 4500*2250*2480mm | Max Traveling Speed: | 110m/min |
| High Light: | 1000W CNC Metal Laser Cutter,±0.01mm CNC Metal Laser Cutter,1530 CNC Metal Laser Cutter |
||
Product Description
Ut1530fl100 Industry 1530 Cnc Metal Laser Cutter/Fiber Laser Cutting Machine For Stainless Steel Aluminum
Application Material
Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Product Description
Fiber laser cutting machine adopts the most sophisticated Germany IPG laser, combining Gantry CNC machine designed by our company.
It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision.
Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting.
It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Specifications
| Model | UT-F300-1530 | UT-F500-1530 | PE-F1000-1530 |
| Laser Power | 300W | 500W | 1000W |
| Max. Cutting Thickness | 2~3mm | 3~5mm | 8~12mm |
| Work Table Max. Load | 700 KGS | 800 KGS | 1000 KGS |
| Laser Type | Imported Fiber Laser | ||
| Laser Technology | Germany Technology | ||
| Working area | 3000 x 1500 mm | ||
| X axis Stroke | 3000 mm | ||
| Y axis Stroke | 1500 mm | ||
| Z axis Stroke | 150 mm | ||
| Max. Cutting Speed (Carbon Steel) |
12m/min (up to materials) | ||
| Transmission Way | Imported ball screw | ||
| Table-Driven System | Japanese Panasonic Servo Motor & Driver | ||
| Focus Method | Dynamic Following and Automatic Adjust Focus | ||
| Location Precision | ≤±0.05 mm | ||
| Re-Location Precision | ±0.02 mm | ||
| Max. Moving Speed | 100m/min | ||
| Laser Wavelength | 1070nm | ||
| Minimum Line Width | ≤0.1mm | ||
| Supporting Format | PLT, DXF, BMP, AI | ||
| Power Demand | 380V/50HZ | ||
| Control Method | Offline Movement Control | ||
| Control Software | Perfect Laser Professional Laser Cutting Software | ||
