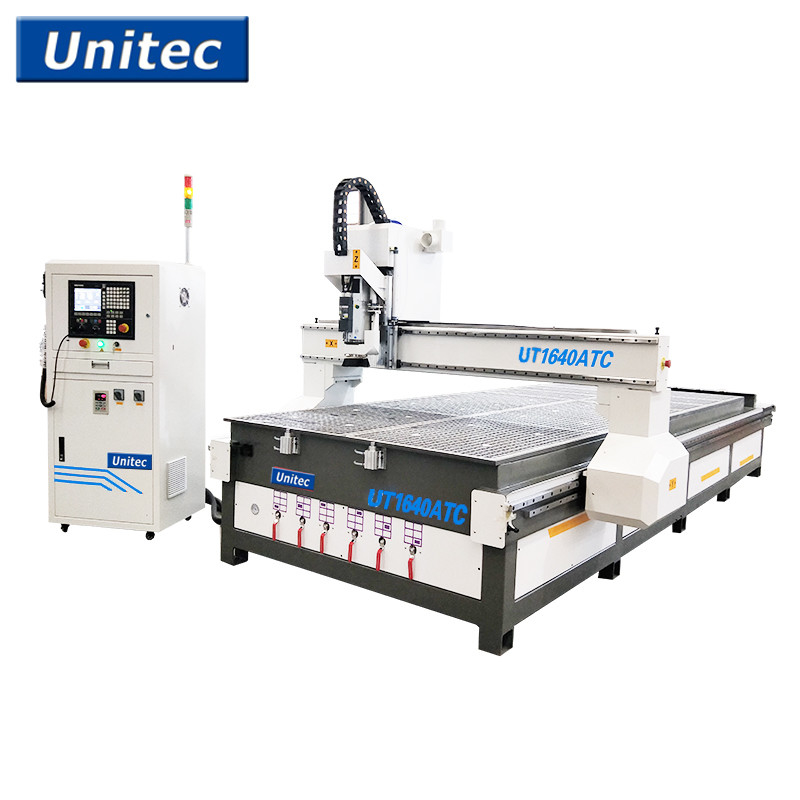

40000mm/Min 24000rpm ATC CNC Router Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1640ATC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Tool Changer: | Linear Tool Changer | Spindle Speed: | 24000rpm |
|---|---|---|---|
| Max Travel Speed: | 40000mm/min | Max Work Speed: | 20000mm/min |
| Motor: | AC Servo Motor | Work Voltage: | AC380V 50HZ |
| Controller System: | / Ncstudio Or Syntec | Processing Accuracy: | ±0.05mm |
| High Light: | 40000mm/min ATC CNC Router Machine,24000rpm ATC CNC Router Machine,24000rpm 3 spindle ATC machine |
||
Product Description
CNC router with ATC,3 spindle ATC machine
|
XYZ Travel Size |
1650X4300X220mm |
|
Max Working Size |
1600X4000X160mm |
| Table Size | 1600X4000mm |
| Transmission Type | XY/Z XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | vacuum |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Linear Tool Changer |
| Spindle Speed | 24000rpm |
|
Max Travel Speed |
40000mm/min |
| Max Work Speed | 20000mm/min |
| Motor | AC servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | / Ncstudio or Syntec |
|
Processing Accuracy |
±0.05mm |
|
Repeat Positioning Accuracy |
±0.01mm |
| File Format | G/PLT G code or PLT |
| Overall Weight | 3200KG |
| Overall Dimension | 2300X4800X1900mm |
Applications and Materials
- Furniture Industry: wood door,cabinet,classic furniture,panel furniture,etc
- Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
- Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Equipped with automatically materials locating system, improve the efficiency of materials clamping and solve the accuracy problem of processing obverse and reverse side of the material
5. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
6. Main configurations adopts imported accessories which will ensure the overall running performance
7. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
