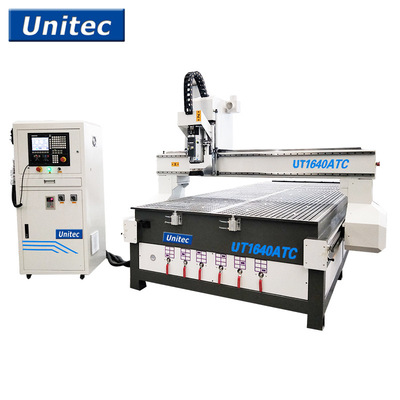

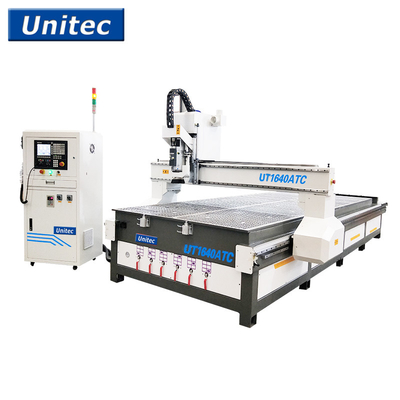

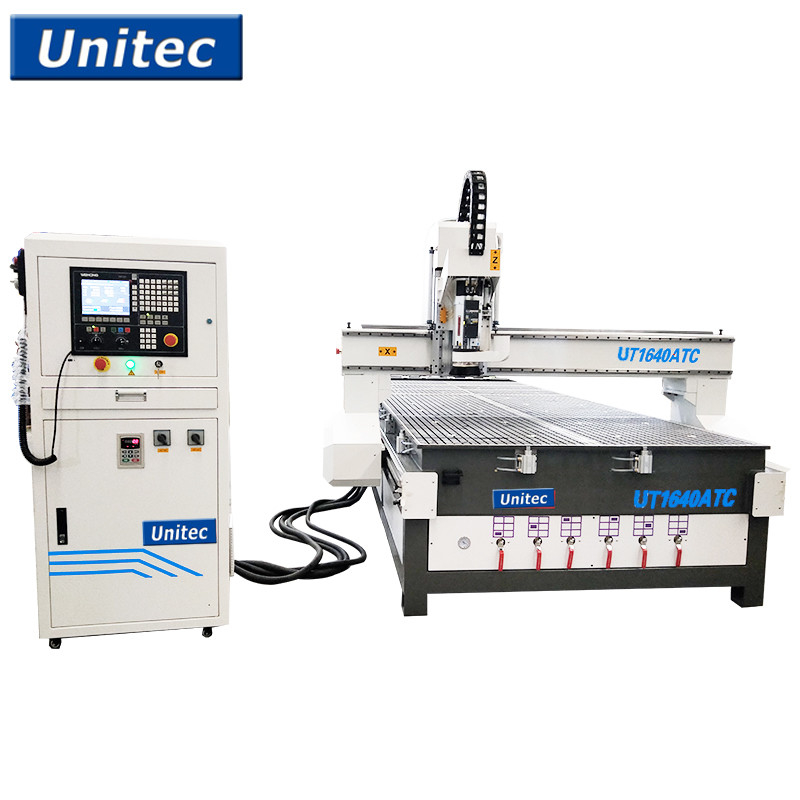

40000mm/Min 9KW 1640 Metal CNC Router Engraving Machine
Product Details:
Place of Origin: | China |
Brand Name: | Unitec |
Certification: | CE |
Model Number: | UT1640ATC |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 SET |
---|---|
Packaging Details: | Crate with steel grame |
Delivery Time: | 15 -25 working days |
Detail Information |
|||
Table Type: | Vacuum | Spindle Power: | 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle |
---|---|---|---|
XYZ Travel Size: | 1650X4300X220mm | Guide Rail: | Linear Guide |
Max Working Size Voltage: | 1600X4000X160mm | Table Size: | 1600X4000mm |
Transmission Type: | XY/Z XY Rack/Z Ball Screw | Vacuum Pump: | 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump |
High Light: | 1640 cnc router engraving machine,40000mm/min cnc router engraving machine,9KW cnc router engraving machine |
Product Description
1640 Industrial CNC Router Metal Engraving Machine
1. Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability
2. High accuracy HIWIN linear guide from Taiwan, high accuracy helical gear rack transmitting, more stability, high precision stability.
3. Configured advanced Ncstudio NK260 control system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance, Own more powerful application performance .
4. Has power off restoration,continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design .
6. Standard configured 380V 9KW Italy HSD air cooling ATC spindle motor, high power, high efficiency.
7. Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc .
8. Independent control cabinet,Stronger power and weak power separate, maintenance easily .
9. Can optional the vaccum system and dust collector system .
Applications and Material
Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
XYZ Travel Size |
1650X4300X220mm |
Max Working Size |
1600X4000X160mm |
Table Size | 1600X4000mm |
Transmission Type | XY/Z XY rack/Z ball screw |
Guide Rail | Linear Guide |
Table Type | vacuum |
Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
Tool Changer | Linear Tool Changer |
Spindle Speed | 24000rpm |
Max Travel Speed |
40000mm/min |
Max Work Speed | 20000mm/min |
Motor | AC servo motor |
Work Voltage | AC380V 50HZ |
Controller System | / Ncstudio or Syntec |
Processing Accuracy |
0.05mm |
Repeat Positioning Accuracy |
0.01mm |
File Format | G/PLT G code or PLT |
Overall Weight | 3200KG |
Overall Dimension | 2300X4800X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
