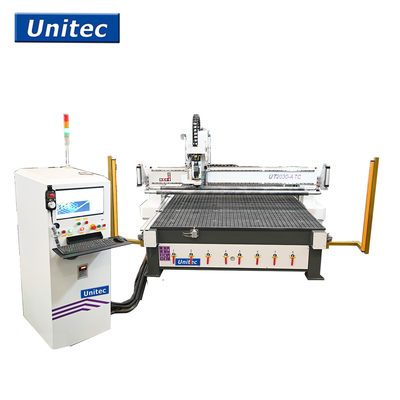

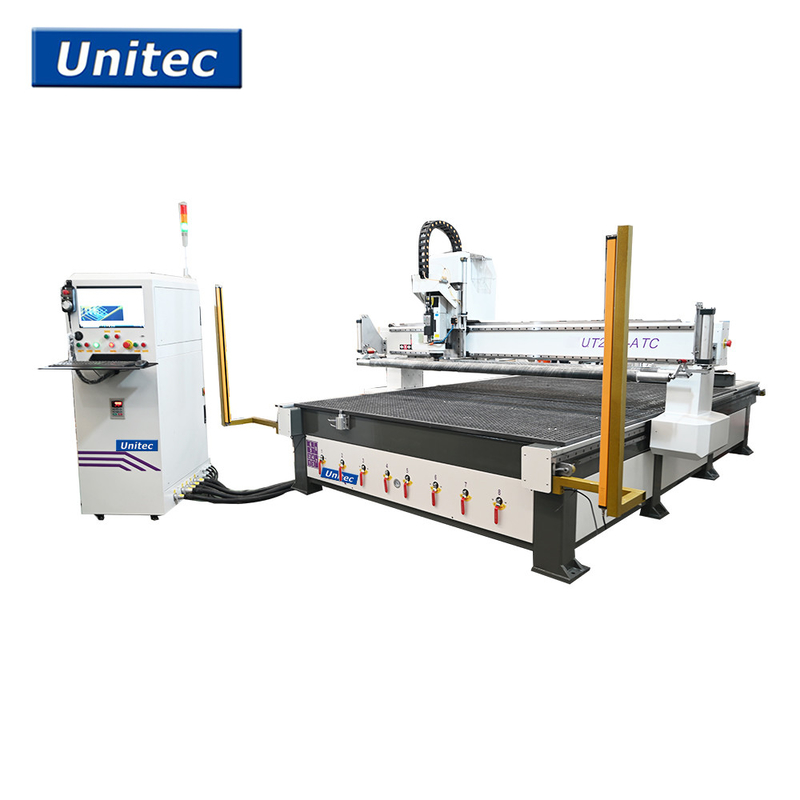

24000rpm UT2030ATC 3200KG ATC Automatic Wood Carving Machine

24000rpm UT2030ATC 3200KG ATC Automatic Wood Carving Machine
24000rpm UT2030ATC 3200KG ATC Automatic Wood Carving Machine

Large Image :  24000rpm UT2030ATC 3200KG ATC Automatic Wood Carving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 25 working days
Detailed Product Description
XYZ Travel Size: 2100X3300X210mm Max Working Size Voltage: 2000X3000X180mm
Table Size: 2100X3100mm Transmission Type: XY/Z XY Rack/ Z Ball Screw
Guide Rail: Linear Guide Table Type: Vacuum
Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Tool Changer: Linear ATC With 8 Tool Positions
High Light:

3200KG Automatic Wood Carving Machine

,

24000rpm Automatic Wood Carving Machine

,

UT2030 Automatic Wood Carving Machine

ATC Woodworking Cnc Router



Applications and Material

  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel





XYZ Travel Size

2000X3000X220mm



Max Working Size

2000X3000X220mm
Table Size 2050X31000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 3200KG
Overall Dimension 2300X4800X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
