|Transmission Type:||XY/Z XY Rack/Z Ball Screw||Spindle Speed:||24000/18000rpm|
|Spindle Power:||9KW Italy HSD ATC Spindle||XYZ Travel Size:||1320X2520X220mm|
|Max Working Size:||1300X2500X2200mm||Table Size:||1400X2500mm|
|Guide Rail:||Linear Guide||Table Type:||Vacuum Table|
|Tool Changer:||Linear ATC With 6 Tool Positions||Motor:||Taiwan Delta Servo|
18000rpm CNC Carving Router,
9KW CNC Carving Router,
1325 CNC Carving Router

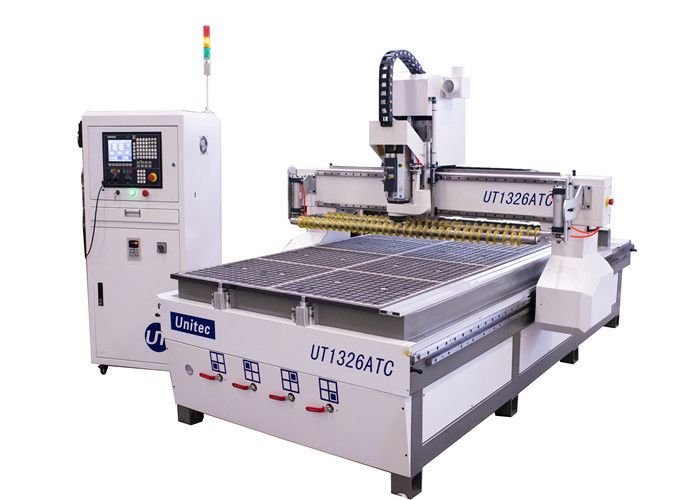

Auto Tool Changing 1325 Atc Wood CNC Machine 9kw CNC Carving Router
1) T-slot Table: Small-scale processing by using material holder, eliminating the need for
a vacuum pump electricity.
2) Water cooling spindle, with high precision, long life time, steady working, easy to start up.
3) Taiwan Hiwin linear square guide rail, self-lubricating sliding block. It ensures equal
force in all directions and accuracy and strength of the machine.
4) Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
5) Splendid independent controlling cabinet, easy to make maintenance, use friendly interface.
1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.
2. Strong Gantry Design
With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.
3. Large Power Water Cooling Spindle
Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.
4. Guide Rail And Transmission
XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.
5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.
6. Famous Motor And Driver
China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.
7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.
8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
XYZ Travel Size
Max Working Size
|Transmission Type||XY/Z XY rack/Z ball screw|
|Guide Rail||Linear Guide|
|Table Type||T slot|
9KW ITALY HSD ATC Spindle
Max Travel Speed
Max Processing Speed
Stepper or Servo
|Work Voltage||AC380V 50HZ|
|Ncstudio or Syntec|
Repeat Positioning Accuracy
|File Format||G/PLT; G code or PLT|
1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.
make these model machine working very stable and more durable.
2. Iron casting table body insure machine movement of working more stable and low noisy.
3. mach3 controller with usb port. you can use your laptop to control machine
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
