Payment & Shipping Terms:
|Spindle Power:||3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle||Table Size:||1400X2500mm|
|Transmission Type:||XY/Z XY Rack/Z Ball Screw||XYZ Travel Size:||1320X2520X150mm|
|Guide Rail:||Linear Guide||Table Type:||T Slot|
|Max Working Size:||1300X2500X120mm||Spindle Speed:||24000/18000rpm|

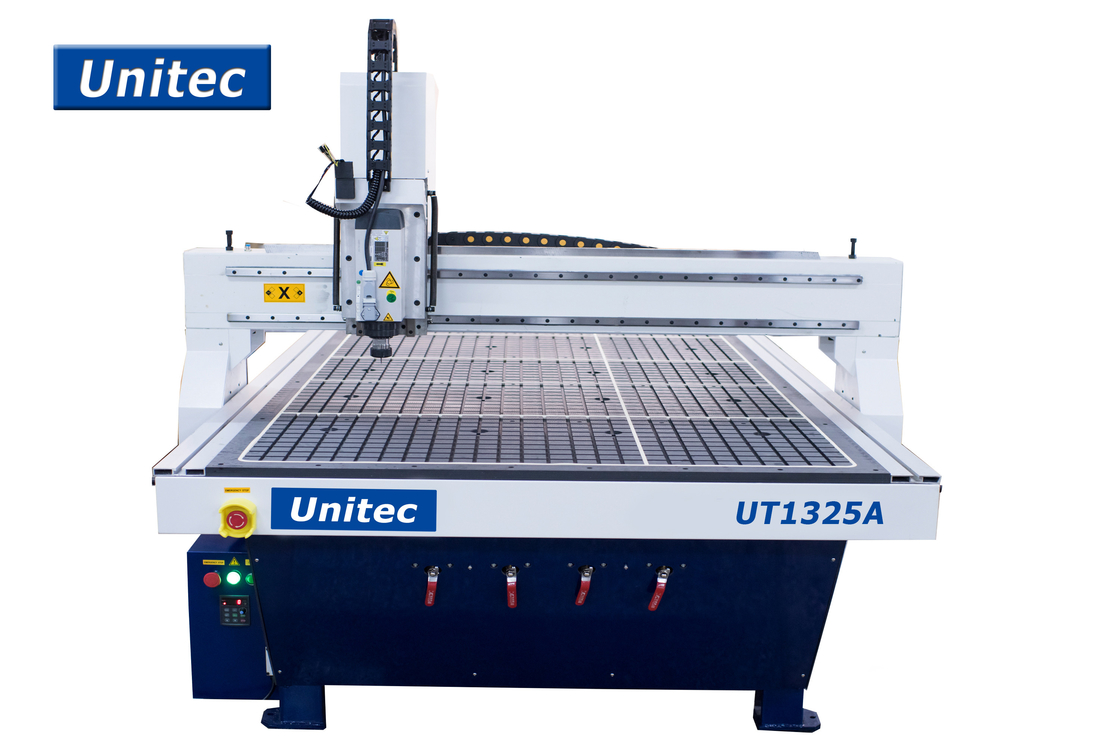

1400X2500mm CNC Wood Router,
4X8FT CNC Wood Router,
1.3mx2.5m CNC Wood Router
Multipurpose Woodworking Machine Price 1325 CNC Router CNC Wood Router
1. Specially design single spindle or multi-spindle for wood cutting and relief engraving.
2. Imported Hiwin square guide rail and PMI ball screws
3. Genuial NC STUDIO or SYNTEC control system, runs steadily
4. High power servo motor and driver
5. High power, lower noise spindle
6. Welding steel structure and 10mm gantry.
7. Functions of power-off recovery, continuation on break point, time anticipation.
8. Aluminium alloy T-slot table.
1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.
2. Strong Gantry Design
With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.
3. Large Power Water Cooling Spindle
Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.
4. Guide Rail And Transmission
XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.
5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.
6. Famous Motor And Driver
China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.
7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.
8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
XYZ Travel Size
Max Working Size
|Transmission Type||XY/Z XY rack/Z ball screw|
|Guide Rail||Linear Guide|
|Table Type||T slot|
3KW/5.6EL 3KW China water cool
5.6KW Italy Elte spindle
|Leyu Oscillating Head + CCD camera|
Max Travel Speed
Max Processing Speed
Stepper or Servo
|Work Voltage||AC380V 50HZ|
Repeat Positioning Accuracy
|File Format||G/PLT; G code or PLT|
1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.
make these model machine working very stable and more durable.
2. Iron casting table body insure machine movement of working more stable and low noisy.
3. mach3 controller with usb port. you can use your laptop to control machine
Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.
Suitable for Materials:
Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
