Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

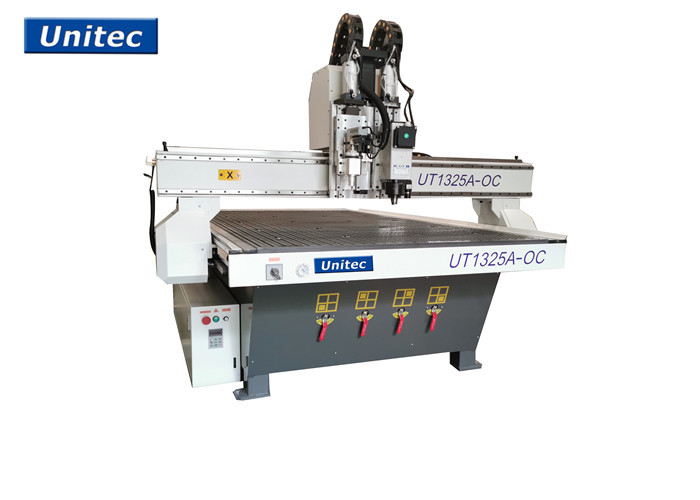

Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router

Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router
Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router

Large Image :  Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A-OC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1320X2520X150mm Max Working Size: 1300X2500X120mm
Table Size: 1400X2500mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T Slot
Spindle Power: 3KW/5.6EL 3KW China Water Cool 5.6KW Italy Elte Spindle Spindle Speed: 24000/18000rpm
High Light:

1400X2500mm Sign Making CNC Router

,

24000rpm Sign Making CNC Router

,

1100KG Sign Making CNC Router

Wood, MDF, Acrylic, Aluminum, EPS, Rubber, Plastic, 1325 CNC Engraving Machine, CNC Router



# Working area: 1300*2500*200mm
# 3 spindles: 3 x 3.5kw air cooling spindle
# Table: Vacuum table with vacuum pump
# Transmission: X, Y gear transmission, Z-axis Taiwan TBI ball screw
# Inverter: Fuling inverter
# Square rail from Taiwan HIWIN
# Motor: Stepper motor system
# Operating System: DSP control system
# Dual dust collector
# Oil injection system
# Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut,etc
# Filter, tool sensor, tools box
# 380v 3 phrase.





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Leyu Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 0Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 1

Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 2Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 3Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 4Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 5

Rubber Plastic 1325 1400X2500mm Oscillating Sign Making CNC Router 6
