3 Spindle 1325 1500X2500 Multi Head Wood Carving CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

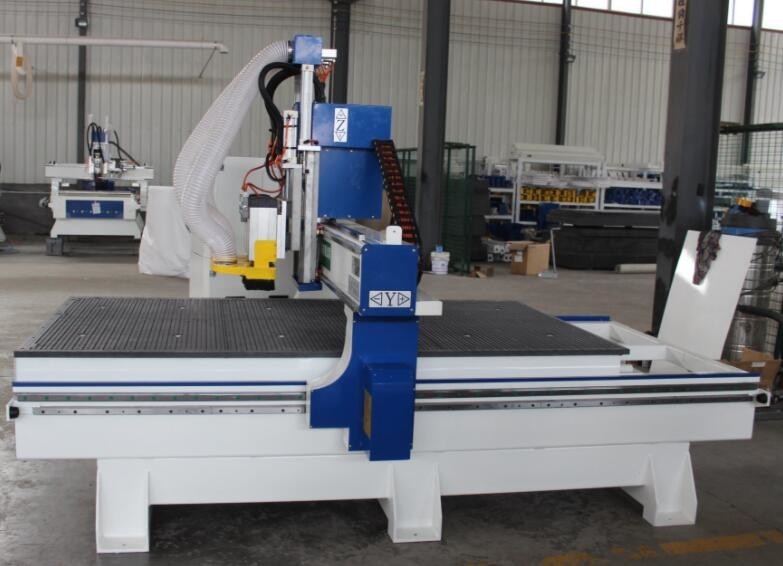

3 Spindle 1325 1500X2500 Multi Head Wood Carving CNC Router

3 Spindle 1325 1500X2500 Multi Head Wood Carving CNC Router
3 Spindle 1325 1500X2500 Multi Head Wood Carving CNC Router

Large Image :  3 Spindle 1325 1500X2500 Multi Head Wood Carving CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-3D
Detailed Product Description
Table Size: 1500X2500 XYZ Working Size: 1100X2500X150
Max.Travel Speed: 14000mm/min Spindle Power: 4 X 2.2KW China Watercool
Table: T-Slot With 2.2KW Dust Clean System Controller: Original Ncstudio/DSP/MACH3
Transimission: Helical Rack And Pinion; Taiwan Linear Guide Rail Motor: Easy Servo
High Light:

UT1325-3D Wood Carving CNC Router

,

14000mm/min Wood Carving CNC Router

,

1500X2500 Wood Carving CNC Router

1325 Multi Head Wood Carving CNC Router with 3 Spindle



1. Well-known HQD air cooling spindle(optional HSD spindle), high precision, long life time, steady working, easy to start up.
2. Thicken square pipe structure, well welded,no distortion for whole structure.
3. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4. DSP controller system with USB interface, working without connecting with computer during working and easy to control.
5. This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
6. Adopt high speed stepper motor and drivers,and two motors for Y axis. Max speed is 30M/MIN.



This is a multi-spindle engraving machine with 4 spindles. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.



Features:
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.



Model UT1325-3D
Table size 1500X2500
XYZ working size 1100X2500X130
Table T-Slot with 2.2KW Dust clean system
Transimission helical rack and pinion; Taiwan Linear Guide Rail
Motor easy servo
Spindle Power 4 x 2.2KW China watercool
Max.Travel Speed 14000mm/min
Controller original ncstudio/DSP/MACH3
File Format .nc/.u00/.plt
Software router8
Voltage 220V/50~60HZ
Total Power Consumption 10KW
Machine Net Weight 1000KG
Overall Dimension 1950X3000X1700



1. Fission key board control,ensure users operate easily.

2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .

3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.

4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software

5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.

6. Lathe bed welded with seamless steel tube,not easy to be deformed.



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



1) Double head with separate motors, higher working efficiency and better machining performance.

2) NC control system, can operate the machine very well.

3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.

4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.
