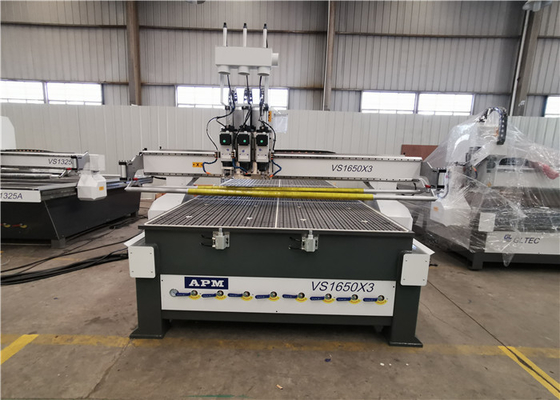

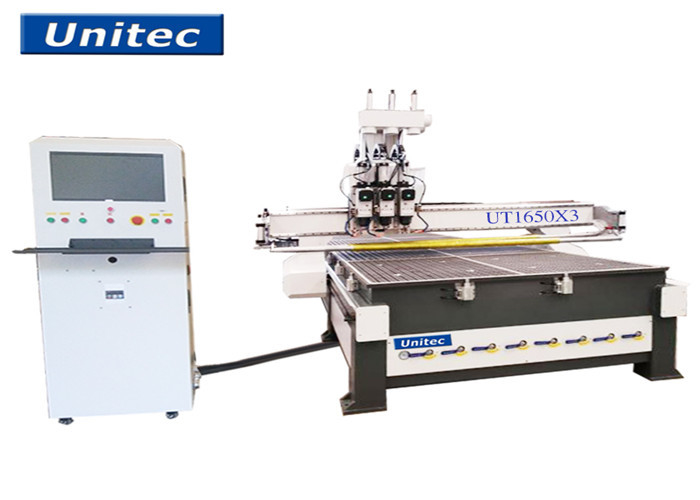

Double Head Multi Spindle CNC Router For Wood Furniture

Double Head Multi Spindle CNC Router For Wood Furniture
Double Head Multi Spindle CNC Router For Wood Furniture Double Head Multi Spindle CNC Router For Wood Furniture Double Head Multi Spindle CNC Router For Wood Furniture

Large Image :  Double Head Multi Spindle CNC Router For Wood Furniture

Product Details:

Model Number: UT1650X3
Detailed Product Description
XYZ Travel Size: 1600X5000X200mm Working Size: 1600X5000X200mm
Table Size: 1600X5000mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Taiwan PMI Linear Guide Overall Weight: 2600KG
Vacuum Pump: 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump Overall Dimension: 2250X6000X1900mm
High Light:

2600KG Multi Spindle Router

,

AC380V Multi Spindle CNC Router

,

1600X5000mm Multi Spindle CNC Router

UT1325-T3 cnc router multi spindles wood cutting machinery for sale



1. Fission key board control,ensure users operate easily.

2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .

3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.

4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software

5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.

6. Lathe bed welded with seamless steel tube,not easy to be deformed.



Features:

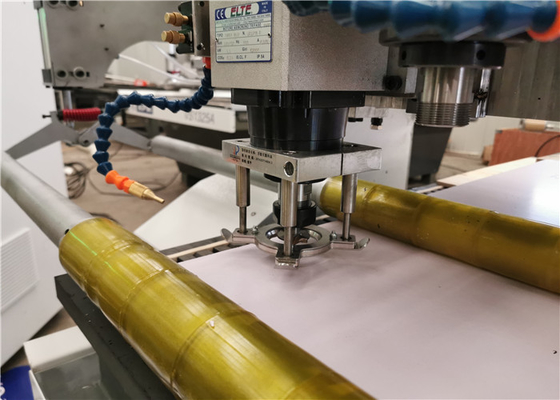

1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.



XYZ Travel Size 1600X5000X200mm
Working Size 1600X5000X200mm
Table Size 1600X5000mm
Transmission Type XY rack/Z ball screw
Guide Rail Taiwan PMI Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm
Max Travel Speed 40000mm/min
Max Working Speed 20000mm/min
Motor Taiwan Delta AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2600KG
Overall Dimension 2250X6000X1900mm



1) Double head with separate motors, higher working efficiency and better machining performance.

2) NC control system, can operate the machine very well.

3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.

4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.







Double Head Multi Spindle CNC Router For Wood Furniture 0

Double Head Multi Spindle CNC Router For Wood Furniture 1

Double Head Multi Spindle CNC Router For Wood Furniture 2Double Head Multi Spindle CNC Router For Wood Furniture 3Double Head Multi Spindle CNC Router For Wood Furniture 4
