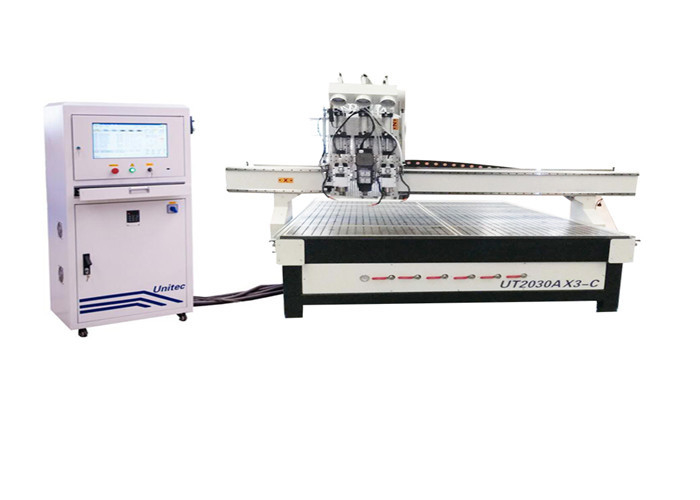

Three Heads DSP Vacuum Table Multi Spindle CNC Router
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2030X3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| XYZ Travel Size: | 2000X3000X200mm | Working Size: | 2000X3000X200mm |
|---|---|---|---|
| Table Size: | 2050X3100mm | Transmission Type: | XY Rack/Z Ball Screw |
| Guide Rail: | Taiwan PMI Linear Guide | Table Type: | Vacuum |
| Vacuum Pump: | 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump | Spindle Power: | 5.6KW Italy Air Cool Spindle |
| High Light: | 2200KG Multi Spindle CNC Router,AC380V 50HZ Multi Spindle CNC Router,Unitec Multi Head CNC Router |
||
Product Description
Three Multi Spindles 3 Heads DSP Vacuum Table MDF Cutting Furniture Cabinet Atc 3D Wood Working
Advantage of ATC Woodworking CNC Processing center
1. The overall bed with steel seamless welding ,wearing strong, durable ,not easily deformed.Imported square guide rail and high precision ball screw, high precision,wear -resistant,smooth operation
2.Linear automatically tool changer system, tool change only takes more than ten seconds, you can save the tool change time, improve the production efficiency
3.Optional Taiwan LNC system, Intelligent processing cross-border protection functions to prevent the design area beyond, and the intelligent processing speed control function, you can adjust the processing speed, increasing the tool working life
4.T slot lathe structture and 6 separated vacuum adsorption table .assuring the high stability .can adsorb different size plates, more flat sheet
Features
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.
| XYZ Travel Size | 2000X3000X200mm |
| Working Size | 2000X3000X200mm |
| Table Size | 2050X3100mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Taiwan PMI Linear guide |
| Table Type | Vacuum |
| Vacuum pump | 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 5.6KW Italy Air Cool Spindle |
| Spindle Speed | 18000rpm |
| Max Travel Speed | 40000mm/min |
| Max Working Speed | 20000mm/min |
| Motor | Taiwan Delta AC Servo Motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio / Syntec |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G Code/PLT Code |
| Overall Weight | 2200KG |
| Overall Dimension | 3600X2300X1900mm |
1. Fission key board control,ensure users operate easily.
2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .
3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.
4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software
5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.
6. Lathe bed welded with seamless steel tube,not easy to be deformed.
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
1) Double head with separate motors, higher working efficiency and better machining performance.
2) NC control system, can operate the machine very well.
3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.
4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.
