24000rpm CNC Stone Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

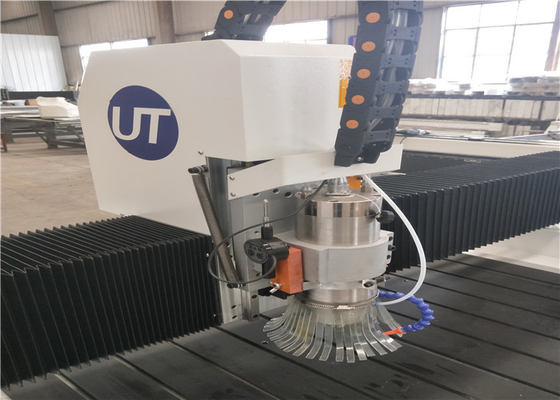

24000rpm CNC Stone Engraving Machine

24000rpm CNC Stone Engraving Machine
24000rpm CNC Stone Engraving Machine 24000rpm CNC Stone Engraving Machine

Large Image :  24000rpm CNC Stone Engraving Machine

Product Details:

Model Number: TJ-1212
Detailed Product Description
X,Y-Working-area: 1250X1250X200mm Max Working Size: 1200X1200X150mm
Table-size: 1300X1200mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Water Cool Spindle 3.0KW/4.4KW Pindle Speed: 24000rpm
High Light:

1300X1200mm CNC Stone Engraving Machine

,

24000rpm CNC Stone Engraving Machine

,

20000mm/min CNC Stone Engraving Machine

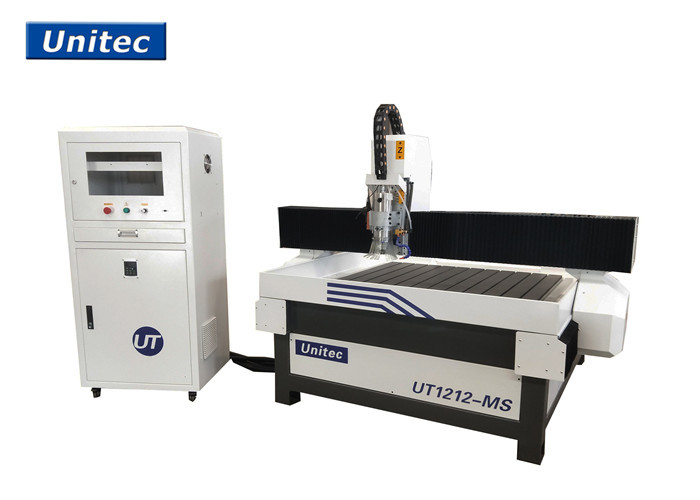

UT1212-MS CNC stone engraving machine with CE



Feature

1. The frames is welded by thick-walled rectangular steel and tempered at high temperature
2. No deformation,high rigidity,with over 3 tons of load-bearing frame
3. Taiwan imported rails and sliders,HIWIN,high precision,low noise,durable.
4. Transmission parts are imported rack with high precision and speed.
5. The machine cable and Electrical adopts international famous brand,which makes the machine works in steady and high efficient condition.
6. Unique domestic water circulation system,energy saving and environment protection.
7. Newest design of triaxial enclosed totally,dustproof,waterproof.



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-



2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

XYZ Travel Size 1250X1250X200mm
Max Working Size 1200X1200X150mm
Table Size 1300X1200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1200KG
Overall Dimension 1900X1900X1600mm



24000rpm CNC Stone Engraving Machine 024000rpm CNC Stone Engraving Machine 124000rpm CNC Stone Engraving Machine 224000rpm CNC Stone Engraving Machine 324000rpm CNC Stone Engraving Machine 424000rpm CNC Stone Engraving Machine 524000rpm CNC Stone Engraving Machine 6
