Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

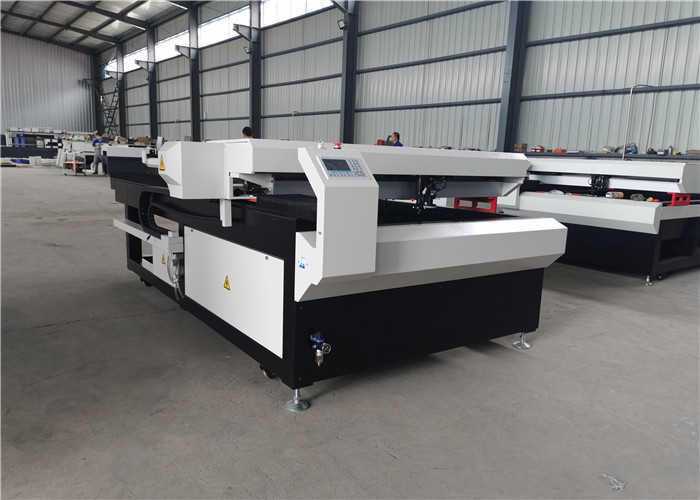

Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing

Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing
Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing

Large Image :  Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
X\Y Location Accuracy(mm/m): ±0.025 X\Y Repeat Location Accuracy(mm): ±0.005
Voltage (50/60Hz): 220V Single Phase Max Location Speed (m/min): 20
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

UT1325 CO2 Laser Cutting Machine

,

150W CO2 Laser Cutting Machine

,

1200×900mm Metal Cutting Laser Machine

UT1325CL150 1325 Metal Fiber Cutting Laser Machine For Metal sheet Processing



Applied materials and Industry:

Fiber cutting head (Metal Material):

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.



Fiber cutting head (Metal Industries):



Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃

Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic



Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.



Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing 0Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing 1Single Phase CO2 Laser Cutting Machine For Metal Sheet Processing 2
