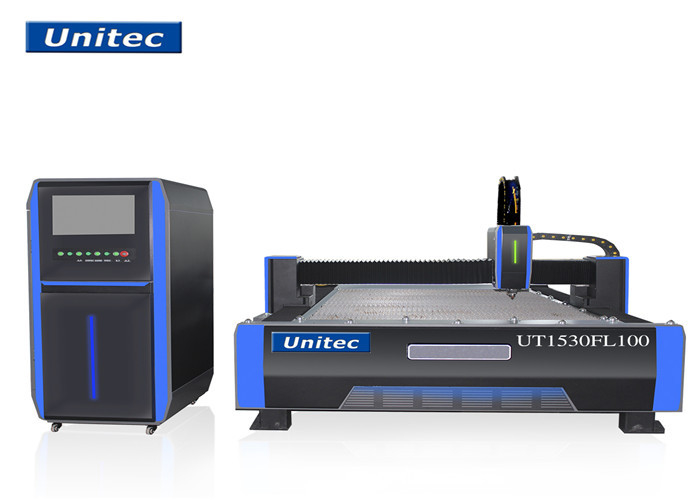

1530 1325 1500mm*3000mm Fiber Laser Cutting Machine For Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1530FL100 |
|
Detail Information |
|||
| Processing Area: | 1500mm*3000mm | Fiber Power: | Raycus 1000W |
|---|---|---|---|
| Cooling Mode: | Water Cooling And Protection System | Resetting Positioning Accuracy: | ±0.01mm |
| Max Acceleration: | 1G | Compatible Software: | CorelDraw/AutoCAD/Photoshop/AI … |
| Whole Machine Size: | 4500*2250*2480mm | Max Traveling Speed: | 110m/min |
| High Light: | ±0.01mm Fiber Laser Cutting Machine,1500mm*3000mm Fiber Laser Cutting Machine,380V 50HZ Metal Laser Cutting Machine |
||
Product Description
Heavy duty steel welded machine frame
The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.
Heavy duty steel welded machine frame
Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.
CypCut Controller
Support flight cutting, leapfrog, electric focusing, double exchange workbench Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min Maximum air movement speed 80m/min Maximum acceleration 0.8G
Product Description
Fiber laser cutting machine adopts the most sophisticated Germany IPG laser, combining Gantry CNC machine designed by our company.
It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision.
Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting.
It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Specifications
| Model | UT-F300-1325 | UT-F500-1325 | UT-F1000-1325 |
| Laser Power | 300W | 500W | 1000W |
| Max. Cutting Thickness | 2~3mm | 3~5mm | 8~12mm |
| Work Table Max. Load | 700 KGS | 800 KGS | 1000 KGS |
| Laser Type | Imported Fiber Laser | ||
| Laser Technology | Germany Technology | ||
| Working area | 3000 x 1500 mm | ||
| X axis Stroke | 3000 mm | ||
| Y axis Stroke | 1500 mm | ||
| Z axis Stroke | 150 mm | ||
| Max. Cutting Speed (Carbon Steel) |
12m/min (up to materials) | ||
| Transmission Way | Imported ball screw | ||
| Table-Driven System | Japanese Panasonic Servo Motor & Driver | ||
| Focus Method | Dynamic Following and Automatic Adjust Focus | ||
| Location Precision | ≤±0.05 mm | ||
| Re-Location Precision | ±0.02 mm | ||
| Max. Moving Speed | 100m/min | ||
| Laser Wavelength | 1070nm | ||
| Minimum Line Width | ≤0.1mm | ||
| Supporting Format | PLT, DXF, BMP, AI | ||
| Power Demand | 380V/50HZ | ||
| Control Method | Offline Movement Control | ||
| Control Software | Perfect Laser Professional Laser Cutting Software | ||
