5.6kw Italy Elte 4FTX8FT 3 Axis 3D CNC Wood Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1325A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Positioning Accuracy (mm):: | 0.05 Mm | No. Of Spindles: | SINGLE |
|---|---|---|---|
| Machine Type:: | CNC Router | Travel (X Axis)(mm):: | 1300mm |
| CNC Or Not: | CNC | Travel (Y Axis)(mm):: | 2500mm |
| Spindle: | 5.6KW ITALY ELTE / 6KW ITALY HSD | ||
| High Light: | 4X8FT CNC Wood Milling Machine,1.3mx2.5m CNC Wood Milling Machine,4.5kw CNC Wood Milling Machine |
||
Product Description

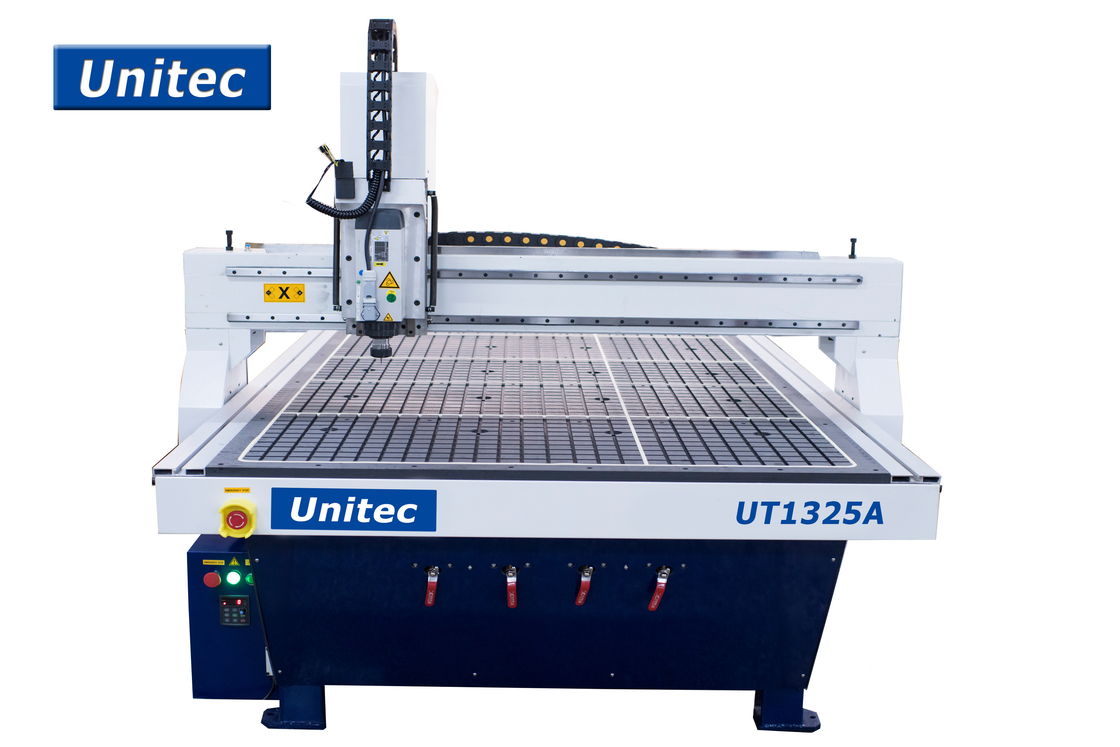

UT1325A 3d Cnc Wood Milling Machine 3 Axis 1325 cnc router
UT1325A is a model with good cost of preformance and universal application,mainly designed for composite and solid wooden doors,and suitable for large-scale production in factory. Can be used for furniture decoration industry, such as flat plate engraving, wood, panle furniture carving, wood art murals, wood cabiet doors carving, etc.
1. The cnc router machines’ body is strong, rigid, high precision, reliable and durable.
2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. cnc router using well-known domestic brands of water-cooled brushless spindle, low noise, strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred
| X/Y/Z working area | 1300*2500*200mm /1220*2440*200mm |
| reposition accuracy | 0.05mm |
| spindle power | 4.5kw,6kw,9kw air cooling spindle (optional) |
| spindle speed | 0-18000rpm/min or 0-24000rpm/m |
| driver motor | servo motor and driver |
| machine structure | heavy steel welded structure |
| X/Y structure | Guide rack,Taiwan csk square rail |
| Z structure | taiwan TBI ball screw |
| table structure | vacuum table |
| max.travelling speed | 70000mm/min |
| max.working speed | 25000mm/min |
| command code | HPGL/G code//Wei Tai/artcam |
| working voltage | AC 380V/50HZ |
| Operating system | syntec control system |
| Weight | 2000kg |
