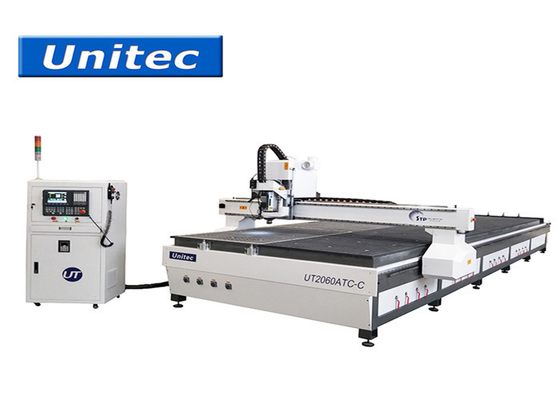

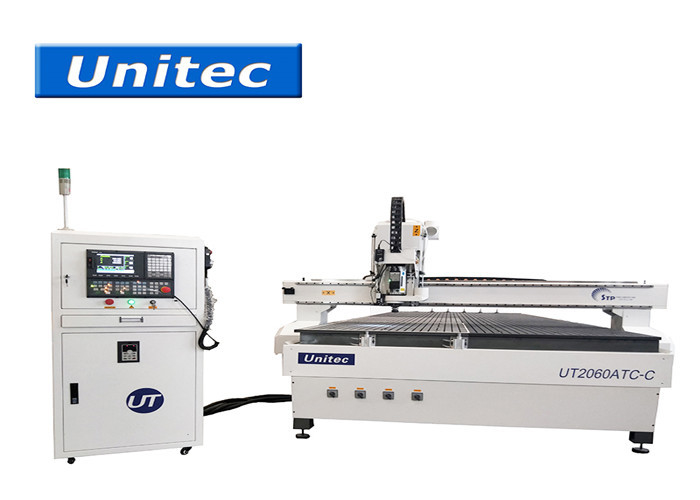

Furniture Carving 2000X6000mm ATC Tool Changer CNC Router

Furniture Carving 2000X6000mm ATC Tool Changer CNC Router
Furniture Carving 2000X6000mm ATC Tool Changer CNC Router Furniture Carving 2000X6000mm ATC Tool Changer CNC Router

Large Image :  Furniture Carving 2000X6000mm ATC Tool Changer CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2060

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 2050X6000X220mm Table Type: Vacuum
Transmission Type: XY/Z XY Rack/Z Ball Screw Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Max Working Size Voltage: 2000X6000X160mm Table Size: 2000X6000mm
Guide Rail: Linear Guide Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump
High Light:

2060 Tool Changer CNC Router

,

2000X6000mm Tool Changer CNC Router

,

2060 Wood CNC Router Machine

Automatic Wood CNC Router Machine 2060 Atc Tool Changer CNC Router for Furniture Carving



wood cnc router feature

  1. Working area:2000*6000*300mm
  2. 9kw Italy HSD ATC air cooling spindle,24000RPM
  3. Taiwan SYNTEC 6MB control system
  4. Cylinder oposition system
  5. Spindle cover for safety operation
  6. Carousel tool magazine with 8 tools
  7. ISO 30 tool holder,can be with 20mm max.diameter tools
  8. Auto oil mist cooling sprayer for working on metal
  9. #30 Taiwan HINWIN/PMI/ABBA linear guide rail
  10. High-precision helical rack gear
  11. Vacuum&T-slot working table with 12 zones
  12. 1kw Japanese YASKAWA servo syste

Applications and Material

  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



XYZ Travel Size

2050X6000X220mm



Max Working Size

2000X6000X160mm
Table Size 2000X6000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 3200KG
Overall Dimension 2700X3800X1900mm






Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.



Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 0Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 1Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 2Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 3Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 4Furniture Carving 2000X6000mm ATC Tool Changer CNC Router 5
