Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

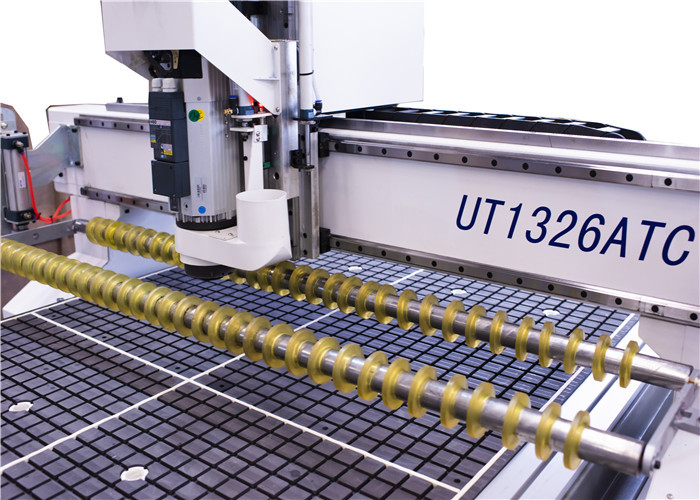

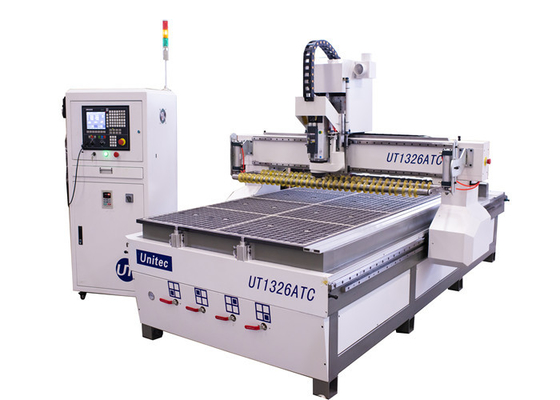

Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC

Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC
Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC

Large Image :  Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC
Detailed Product Description
XYZ Travel Size: 1350X2900X220mm Max Working Size: 1300X2600X160mm
Table Size: 1300X2600mm Guide Rail: Linear Guide
Table Type: Vacuum Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle
Tool Changer: Linear Tool Changer Spindle Speed: 24000rpm
High Light:

1326 ATC CNC Router Machine

,

1800KG ATC CNC Router Machine

,

Unitec ATC CNC Router Machine

UT1326ATC Good character cnc router atc engraving machine for wood and hard pvc



Applications and Material

Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel



1. OR 1224 CNC router with 4 axis, is specially for 4D work,the A axis can rotate 100degree

3. With this machine, you can make different surface carving, arc-surface milling,bending surface machining for 4D jobs,like special shaped arts, bended doors or cabinets

4. It can work on foam ,MDF,Acrylic,wood,and soft metal etc.



XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm



Max Travel Speed

40000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.





Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC 0Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC 1Unitec UT1326 ATC CNC Router Machine For Wood / Hard PVC 2
