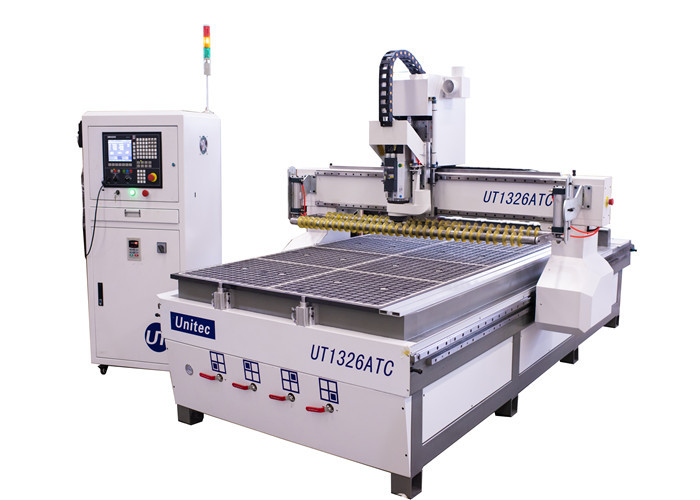

1400X2500mm Automatic 3D Wood Carving CNC Router

1400X2500mm Automatic 3D Wood Carving CNC Router
1400X2500mm Automatic 3D Wood Carving CNC Router 1400X2500mm Automatic 3D Wood Carving CNC Router 1400X2500mm Automatic 3D Wood Carving CNC Router

Large Image :  1400X2500mm Automatic 3D Wood Carving CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Table Size: 1400X2500mm Table Type: Vacuum Table
XYZ Travel Size: 1320X2520X150mm Transmission Type: XY/Z XY Rack/Z Ball Screw
Spindle Speed: 24000/18000rpm Guide Rail: Linear Guide
Spindle Power: 9KW Italy HSD ATC Spindle Max Working Size: 1300X2500X120mm
High Light:

1326 Wood Carving CNC Router

,

1400X2500mm Wood Carving CNC Router

,

18000rpm Wood Carving CNC Router

1325 Automatic 3D Wood Carving Atc CNC Router for Wood Panel Cabinet or Wood Cabinet Doors Making



Our comapany is a professional manufacturer of engraving machines,cuting plotters,marble CNC routers,laser engraving machines and mold engraving machines,We offer ODM OEM serivice to meet your need.If you are interested in our products.pls don`t hestate and kindly send email to us to communicate more business.



1) The lathe bed was cast steel square tube welding body, strong and without distortion.
2) Heavy-duty structure in "Trapezoid" type, and big Gantry bracket.
3) Multi-spindles working simultaneously, improve working-efficiency & easily-operating.
4) Advanced DSP Controller system, to engrave/cut 3D designs within multiple-lays.
5) Vacuum absorption table was adding, it can absorp the wooden materials closely. Guarantee the working-efficiency.
6) Vacuum pump system with six zones, vacuum pump system.
7) Auto-oiling system is very time-saving for you.
8) High power spindle, brushless, water-cooling/air-cooling, working vigorously with low noise.
9) Type3/Artcam/Ucancam/JD Paint/Coreldraw/Castmate/Wentai these related working software.





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000/min



Max Processing Speed

12000mm/min
Motor

Japan Yaskawa or Taiwan Delta Servo

Work Voltage AC380V 50HZ



Controller System

Ncstudio or Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
