Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router

Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router
Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router

Large Image :  Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router

Product Details:

Model Number: UT2030X3
Detailed Product Description
XYZ Travel Size: 2000X3000X200mm Transmission Type: XY Rack/Z Ball Screw
Working Size: 2000X3000X200mm Guide Rail: Taiwan PMI Linear Guide
Spindle Power: 5.6KW Italy Air Cool Spindle Vacuum Pump: 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump
Table Size: 2050X3100mm Table Type: Vacuum
High Light:

18000rpm Multi Process CNC Router

,

2040 4 Spindles CNC Router

,

2040 Multi Process CNC Router

Pneumatic Auto Tool Change 4 Spindles CNC Router 2040 Multi Process CNC Router for Wooden Door Making



1. Perfect model 2000*3000,2000*4000mm wood carving CNC router
2. This kind of cnc router machine with multi spindles, which can do same work at same time. Which is high efficiency.
3. New style economic CNC router machine for woodworking, fulfilling the need for the production with most wooden materials, Devices like vacuum system and dust collector etc, are optional choice for different requirement as convenience to work fast and efficiently.



Features:
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. With heavy duty frame and gantry; the machine was designed for durable.
3. Automatic tool sensor, save time and increase efficiency.



XYZ Travel Size 2000X3000X200mm
Working Size 2000X3000X200mm
Table Size 2050X3100mm
Transmission Type XY rack/Z ball screw
Guide Rail Taiwan PMI Linear guide
Table Type Vacuum
Vacuum pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Air Cool Spindle
Spindle Speed 18000rpm
Max Travel Speed 40000mm/min
Max Working Speed 20000mm/min
Motor Taiwan Delta AC Servo Motor
Work Voltage AC380V 50HZ
Controller System Ncstudio / Syntec
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G Code/PLT Code
Overall Weight 2200KG
Overall Dimension 3600X2300X1900mm



1. Fission key board control,ensure users operate easily.

2. Advanced Taiwan control system,Intelligent processing cross-border protection function,can prevent mechanical impact caused by the improper design documents. and control the processing speed,improve the processing efficiency .

3. Dust collection suck the wood chips,keep the working table clean. Vacuum table can absorb the material, save the plate loading and unloading time.

4. Advanced file preprocessing function,help users to correct errors in a timely. And be compatible with several CAD/CAM designing software

5. Recover caving point after break of disconnecting power.Automatic error correction function guarantee the engraving precision for long time processing.

6. Lathe bed welded with seamless steel tube,not easy to be deformed.



1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



1) Double head with separate motors, higher working efficiency and better machining performance.

2) NC control system, can operate the machine very well.

3) Thick steel tube seamless welding structure make sure high working speed, and will not bend after long time use.

4) Vacuum absorption table with T-slots, hold the processing material tightly and easily. Separate vacuum block is suitable for different sized materials.

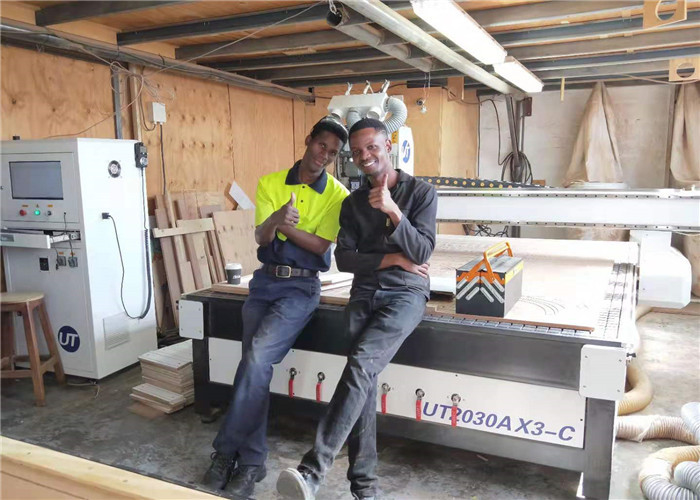

Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router 0

Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router 1

Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router 2Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router 3Pneumatic Auto Tool Change 4 Spindles 2040 Multi Process CNC Router 4
