UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

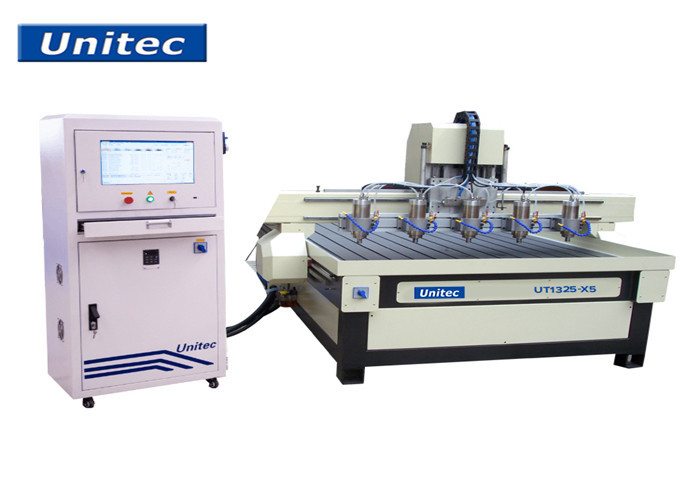

UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine

UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine
UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine

Large Image :  UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-X5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1000X2500X150 Max Working Size: 1300X2500X150mm
Table-size: 1500X2500 Transmission Type: Helical Rack And Pinion; Taiwan Linear Guide Rail
Motor: Easy Servo Table Type: T-Slot With Water Basin And Recycle Cooling System
Spindle Power: 5 X 1.5KW Water Cool Spindle Max.Travel Speed: 14000mm/min
High Light:

1325 CNC Stone Router Machine

,

UT1325-X5 CNC Stone Router Machine

,

1500X2500 CNC Stone Router Machine

UT1325-X5 1325 CNC Router Stone Machine with Best Selling Wood Engraving and Cutting Machine

Optional accessories
1. Rotary axis
---- For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine.
2. Vacuum table (contain vacuum pump and vacuum pipes)
---- For fixing the materials on the working table, especially for bigger working table. After added vacuum table, the voltage will need to be 3 phase/380V.

3. Dust collector (contain dust collector pump and dust collector pipes)
---- For sucking away the dusts, such as wood dusks and so on.

4. Bigger power spindle(1.5kw, 2.2kw, 5.5kw and so on)



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

Model UT1325-X5
Table size 1500X2500
XYZ working size 1000X2500X150
Table T-Slot with water basin and recycle cooling system
Transimission helical rack and pinion; Taiwan Linear Guide Rail
Motor easy servo
Spindle Power 5 x 1.5KW water cool spindle
Max.Travel Speed 14000mm/min
Controller original ncstudio/DSP/MACH3
File Format .nc/.u00/.plt
Software router8
Voltage 220V/50~60HZ
Total Power Consumption 9KW
Machine Net Weight 1200KG
Overall Dimension 1950X3000X1700



UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 0UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 1UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 2UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 3UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 4UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 5UT1325-X5 1325 1500X2500 Table CNC Stone Router Machine 6
