Linear Guide UT-1212 24000rpm CNC Marble Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

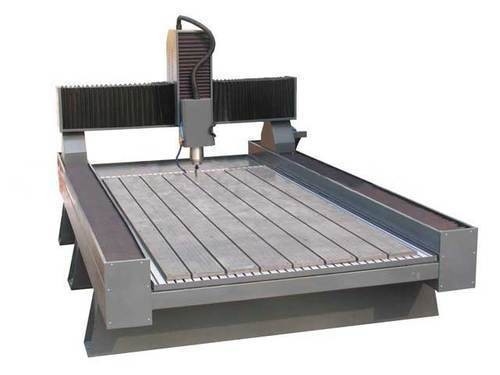

Linear Guide UT-1212 24000rpm CNC Marble Router Machine

Linear Guide UT-1212 24000rpm CNC Marble Router Machine
Linear Guide UT-1212 24000rpm CNC Marble Router Machine Linear Guide UT-1212 24000rpm CNC Marble Router Machine

Large Image :  Linear Guide UT-1212 24000rpm CNC Marble Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT-1212

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
X,Y-Working-area: 1250X1250X200mm Max Working Size: 1200X1200X150mm
Table-size: 1300X1200mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Water Cool Spindle 3.0KW/4.4KW Pindle Speed: 24000rpm
High Light:

TJ-1212 Marble Router Machine

,

24000rpm Marble Router Machine

,

TJ-1212 CNC Marble Router

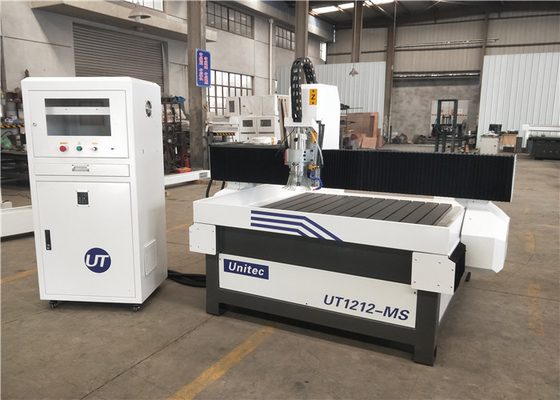

UT1212-MS CNC stone engraving machine with CE



ROUTER OPTIONS


1. Full range of table size
2. Wide range of spindles options; Double/three/four independent Z-axis options
3. Different power of spindle(4.5Kw/5.5Kw/7.5Kw options)
4. Ncstudio 6B/Shanlong/Syntec control system
5. DSP hand controller
6. Digital AC servo as Japan Panasonic/Yaskawa for high-speed engraving
7. Stainless steel sheet metal parts for the whole machine



CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118



1. -Application

This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-

-

2. -Configuration:

-- 1.4.5kw-water-cooling-spindle-

-- 2.stepper-motor-118-

-- 3.-Taiwan-Yako-driver-2811

-- 4.the-whole-steel-structure-

-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.

-- 6.ballscrew-transimssion-

-- 7.Original-TYPE3-UCANCAM-software-

-- 8.DSP-Control-system-(NC-studio-control-system-)

-

3. Features

1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.

2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--

3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--

4. The-transducer-with-stable-output-signals

5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.

6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger

7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/

8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw

-

4. Parameters:

XYZ Travel Size 1250X1250X200mm
Max Working Size 1200X1200X150mm
Table Size 1300X1200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1200KG
Overall Dimension 1900X1900X1600mm



Linear Guide UT-1212 24000rpm CNC Marble Router Machine 0Linear Guide UT-1212 24000rpm CNC Marble Router Machine 1Linear Guide UT-1212 24000rpm CNC Marble Router Machine 2Linear Guide UT-1212 24000rpm CNC Marble Router Machine 3Linear Guide UT-1212 24000rpm CNC Marble Router Machine 4
