1325 CNC Granite Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

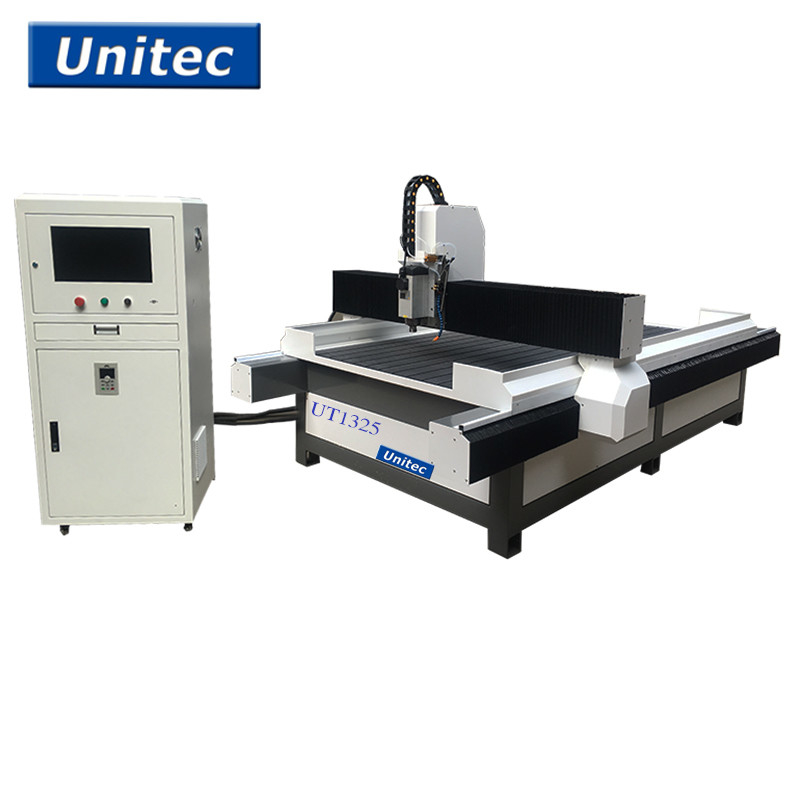

1325 CNC Granite Engraving Machine

1325 CNC Granite Engraving Machine
1325 CNC Granite Engraving Machine

Large Image :  1325 CNC Granite Engraving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325-MS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Machine Body: Welded Steel Tube, Cast Iron Vertical Shafts And S Guide Rail: Hiwin Square Guide Rail
Motor And Driver: Easy Servo Motor Inverter: Inverter
Transport Package: Plywood Case With Water-Proof Material Max. Feeding Height Of Z Axis: 200mm
Spindle: 3.0kw Water Cooling Spindle Table Type: Vacuum Table With Vacuum Pump
High Light:

1400X2500mm CNC Granite Engraving Machine

,

200mm CNC Granite Engraving Machine

,

24000rpm CNC Granite Engraving Machine

UT1325-MS 1325 Stone CNC Engraving Cutting Machine For Granite, Marble



Rotary Device optional. A rotary device includes a fixed body and a shaft. As 4th axis of CNC Router, it could work instead of X or Y axis for column Processing, such as chair jamb, stair jamb, Roman column, pillar etc. The column diameter it fixes could be from 10mm to 400mm, material Could be wood, marble, foam etc.



Applications and Materials
Stone Industry: Marble, granite,bluestone,sand stone, etc


XYZ Travel Size 1350X2550X200mm
Max Working Size 1300X2500X150mm
Table Size 1400X2500mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China water cool spindle 3.0KW/4.4KW
pindle Speed 24000rpm
Max Travel Speed 20000mm/min
Max Work Speed 12000mm/min
Motor Step/servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1800KG
Overall Dimension 1900X3100X1600mm



Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.

3. Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing

4. Professional water cooling spindle specially for stone engraving

5. Equipped with water recycle cooling system with water tank

6. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality

7.  Main configurations adopts imported accessories which will ensure the overall running performance



1325 CNC Granite Engraving Machine 01325 CNC Granite Engraving Machine 11325 CNC Granite Engraving Machine 21325 CNC Granite Engraving Machine 31325 CNC Granite Engraving Machine 41325 CNC Granite Engraving Machine 51325 CNC Granite Engraving Machine 61325 CNC Granite Engraving Machine 71325 CNC Granite Engraving Machine 81325 CNC Granite Engraving Machine 91325 CNC Granite Engraving Machine 10
