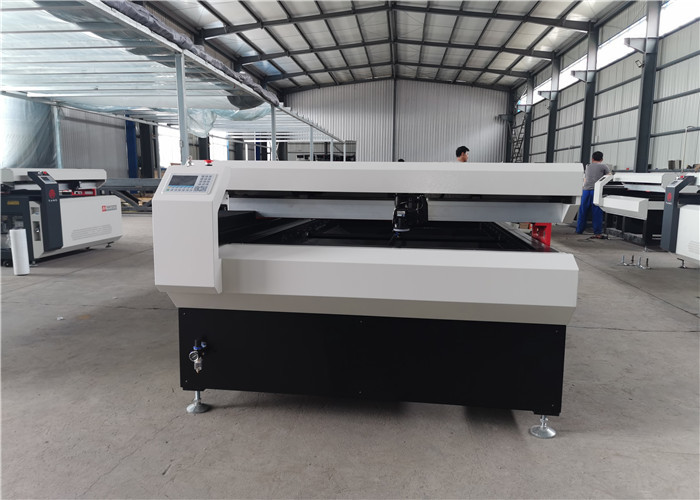

1250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew

1250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew
1250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew

Large Image :  1250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1250mm X 2500mm Laser Tube: 300W SLW Laser Tube; CO2
Motor: Japan Mitsubishi Servo Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: < 40mm(acrylic)
Transmission Type: Taiwan TBI Ball Screw And TBI Linear Guide Repeat Position Accuracy: 0.025mm
High Light:

1250mm X 2500mm CNC Laser Cutting Machine

,

900kgs CNC Laser Cutting Machine

,

18000mm/min CNC Laser Cutter Machine

UT1325CL300 CNC 1325 and 1530 Laser Cutter Machine for Metal Cutting with Ballscrew



Product Application & Samples
1. Mainly used for large blister word cutting, two-color plate engraving, PMMA Plexiglas engraving and cutting,nameplate & crystal & trophy & other authorized cards engraving and cutting.
2. Handicraft industry: to carve various pattern and words in wood, bamboo, ivory, bones, leather, marble, shells etc.
3. Leather garment processing industry: for real leather, synthetic leather, artificial leather, fabrics, fur complex text graphics carving, cutting, hollowing process. Like in clothes, apparel, underwear, furniture, gloves, handbags, shoes and hats, toys and car flower industries. To make them beyond fashion, outstanding .
4. The model industry: to produce sand table construction model and aircraft model, ABS board cutting, multi-layer cutting.
5. Packaging industry: To carve printing rubber plate, plastic plate, double-decker, knife-cutting board.
6. Product marking industry: for equipment nameplate, product anti-counterfate marking etc.
7. Other industries: marble, granite, glass, crystal and other decorative materials engraving and
marking, paper and greeting cards and other paper craft cutting process



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



UT1325CL300
Working Size 1250mm X 2500mm
Laser Tube 300W SLW laser tube; CO2
Motor Japan Mitsubishi Servo
Max Engraving Speed 64000mm per min
Max Cutting Speed 18000mm per min
Max Cutting Thickness < 40mm(acrylic)
Transmission Type Taiwan TBI ball screw and TBI linear guide
Repeat Position Accuracy 0.025mm
Working Temperature 0—45 degrees
Power Supply AC 220v ±10%; 50HZ/60HZ
File Format DXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption <1500w
Cooling system China Special Water Chiller
Controller Original China Ruida controller
Weight 900kgs





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.






1250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew 01250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew 11250mm X 2500mm 1530 CNC Laser Cutting Machine With Ballscrew 2
