1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

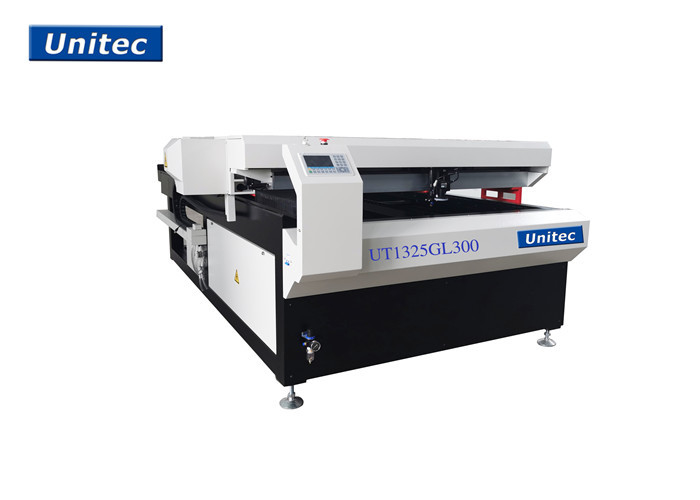

1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF

1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF
1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF

Large Image :  1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200kg Max Acrylic Cut Thickness(mm): 40
Max Location Speed (m/min): 20 X\Y Location Accuracy(mm/m): ±0.025
X\Y Repeat Location Accuracy(mm): ±0.005 Voltage (50/60Hz): 220V Single Phase
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

UT1325 Laser Engraving And Cutting Machine

,

200kg Laser Engraving And Cutting Machine

,

1200×900mm MDF Laser Cutting Machine

UT1325CL150 Cutting-Edge 1325 CO2 Laser CNC Engraving And Cutting Machine



CO2 cutting head (Nonmetal Industries):

1. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2. Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3. Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4. Clothing: leather,cloth,texitle,shoes,fabric,etc



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900mm
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.



1325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF 01325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF 11325 CO2 Laser Engraving And Cutting Machine For Acrylic / MDF 2
