UT1309CL150 1325 CO2 Laser Cutting Machine for Glass Tube

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

UT1309CL150 1325 CO2 Laser Cutting Machine for Glass Tube

UT1309CL150 1325 CO2 Laser Cutting Machine for Glass Tube
UT1309CL150 1325 CO2 Laser Cutting Machine for Glass Tube

Large Image :  UT1309CL150 1325 CO2 Laser Cutting Machine for Glass Tube

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1309CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Effective Working Area: 1300*900mm Working Table: Honeycomb Table
Engraving Speed: 0-60000mm/min Cutting Speed: 0-36000mm/min
Cutting Depth (acrylic): 0-30mm Resetting Positioning Accuracy: <0.01mm
Minimum Shaping Character: English 1mm, Chinese 2mm Power Supply: 220V(or110V)+/-10% 50Hz
High Light:

UT1309 CO2 Laser Cutting Machine

,

1300*900mm CO2 Laser Cutting Machine

,

36000mm/min CO2 Laser Cutting Machine

UT1309CL150 CO2 Laser Cutter Cutting Machine Glass tube



Main Configuration

1. Working area:1300*900mm

2. Power:150W laser tube EFR from Beijing

3. offline working system

4. imported lens

5. Industry chiller CW5000



Applications and Materials
Signmaking Industry: Acrylic, MDF, Wood, etc.



Detailed Parameters:
Effective working area 1300*900mm
Working table Honeycomb table
Engraving speed 0-60000mm/min
Cutting speed 0-36000mm/min
Cutting depth (acrylic) 0-30mm
Resetting positioning accuracy <0.01mm
Minimum Shaping Character English 1mm, Chinese 2mm
Power Supply 220V(or110V)+/-10% 50Hz
Driving mode Stepping motor
Control system RD offline system
Control system DSP system (Laser works of RD, Laser cutter of Leetro, LaserCAD of QC)
Software ArtCut, CorelDraw, PhotoShop, AutoCAD
Operation System Windows 98/ME/2000/XP/VISTA/Windows 7
Working temperature 0-45℃
Working humidity 5-95%
Gross Power 1100W
Machine Dimension 1840*1400*1030(mm)
Package size 2040*1600*1320mm



Highlights
1.  Integral welded big square steel pipe, the mounting surface of guide ail and rack processed by a high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver

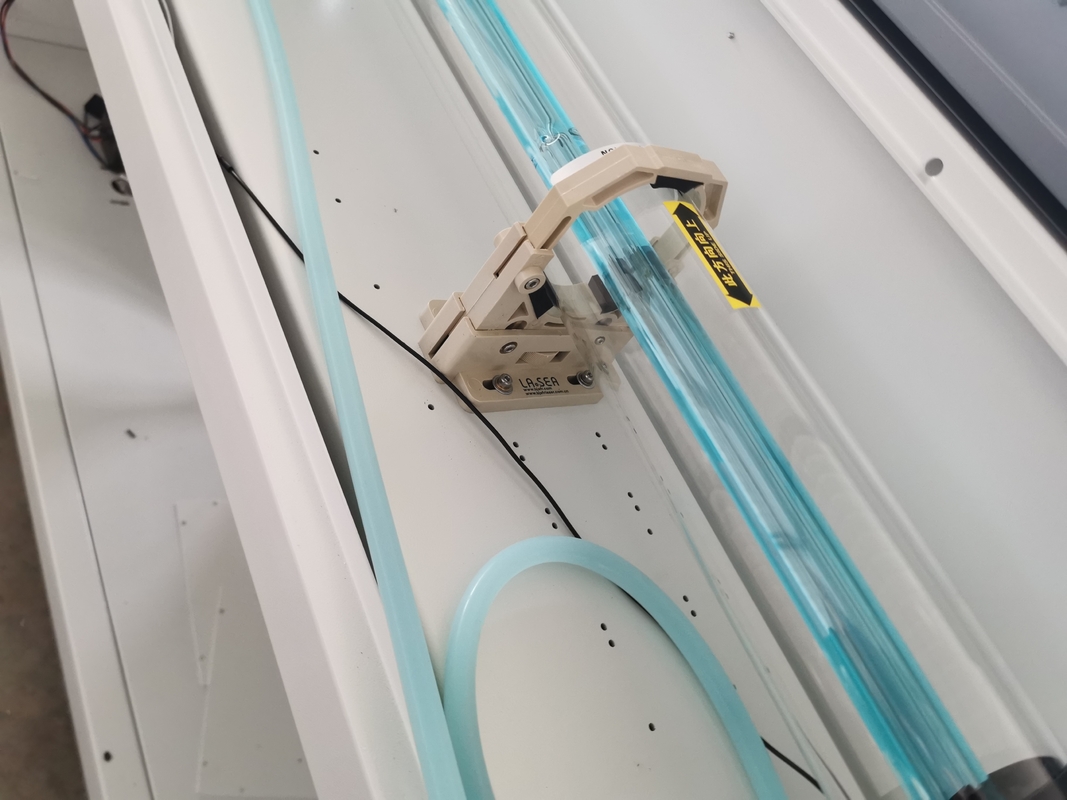

4.  Reliable CO2 glass laser tube
5.  Controller with multi-language options: English, Italy, Germany, France, Spanish, Arabic, etc.
