Water Cooling Raycus 1000w Fiber Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

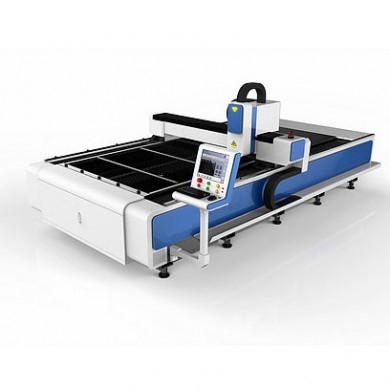

Water Cooling Raycus 1000w Fiber Laser Cutting Machine

Water Cooling Raycus 1000w Fiber Laser Cutting Machine
Water Cooling Raycus 1000w Fiber Laser Cutting Machine

Large Image :  Water Cooling Raycus 1000w Fiber Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530FL100
Detailed Product Description
Processing Area: 1500mm*3000mm Fiber Power: Raycus 1000W
Cooling Mode: Water Cooling And Protection System Resetting Positioning Accuracy: ±0.01mm
Max Acceleration: 1G Compatible Software: CorelDraw/AutoCAD/Photoshop/AI …
Whole Machine Size: 4500*2250*2480mm Max Traveling Speed: 110m/min
High Light:

±0.02mm Fiber Laser Cutting Machine

,

Raycus 1000w Laser Cutter

,

Raycus 1KW Laser Cutter

Ut1530fl100 Cnc Fiber Laser Cutting Machinery Model 1530 Laser Power 1000w



1. Equipped with exhaust devices, have good exhausting effects and little pollution.

2. Small occupied area, high system integration, convenient to operate and maintenance,

4 hours continuous working.

3. The water chiller has good safety protection functions, such as over-temperature, lack phase, pressure, water-break, under-voltage, overload, etc. With stable performance, satisfied the cooling



Product Description



Fiber laser cutting machine adopts the most sophisticated Germany IPG laser, combining Gantry CNC machine designed by our company.
It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision.
Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting.
It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.



Specifications

Model UT-F500-1530 UT-F1000-1530 UT-F2000-1530
Laser Power 500W 1000W 2000W
Max. Cutting Thickness 2~3mm 3~5mm 8~12mm
Work Table Max. Load 700 KGS 800 KGS 1000 KGS
Laser Type Imported Fiber Laser
Laser Technology Germany Technology
Working area 3000x1500 mm
X axis Stroke 3000 mm
Y axis Stroke 1500 mm
Z axis Stroke 150 mm
Max. Cutting Speed
(Carbon Steel)
12m/min (up to materials)
Transmission Way Imported ball screw
Table-Driven System Japanese Panasonic Servo Motor & Driver
Focus Method Dynamic Following and Automatic Adjust Focus
Location Precision ≤±0.05 mm
Re-Location Precision ±0.02 mm
Max. Moving Speed 100m/min
Laser Wavelength 1070nm
Minimum Line Width ≤0.1mm
Supporting Format PLT, DXF, BMP, AI
Power Demand 380V/50HZ
Control Method Offline Movement Control
Control Software Perfect Laser Professional Laser Cutting Software
