Home ProductsAluminum CNC Router

Stepper motor 1325 Aluminum CNC Router For Furniture

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

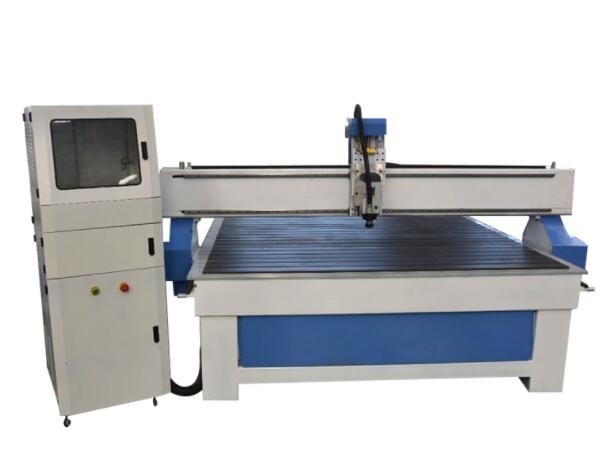

Stepper motor 1325 Aluminum CNC Router For Furniture

Stepper motor 1325 Aluminum CNC Router    For Furniture
Stepper motor 1325 Aluminum CNC Router    For Furniture

Large Image :  Stepper motor 1325 Aluminum CNC Router For Furniture

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Table Type: T-slot Table Working Area (X*Y): 1300mm*2500mm*200mm
X,Y,Z Traveling Positioning Accuracy: ±0.03/200mm X,Y,Z Repositioning Accuracy: ±0.03mm
Spindle: 3kw Air/ Water Cooling Spindle Spindle Speed: 0-18000RPM/24000RPM
Guider: Taiwan Hiwin Square Rail Transmission Type: XY Gears Pinion,Z Axis With ø20mm Ballscrews
High Light:

1325 Aluminum CNC Router

,

Unitec Aluminum CNC Router

,

24000RPM Aluminum CNC Router

Wood Cutter Machine,Woodworking Cnc Router 2060 Cheap Diy Machine For Furniture



Application

Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on

Advertisement: engraving and cutting various labels and number plate.

Art crafts: engraving characters of any languages and graphics on gifts and souvenirs.



Applicable materials

wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.



Working Area (X*Y) 1300mm*2500mm*200mm
Table Type T-slot table
X,Y,Z Traveling Positioning Accuracy ±0.03/200mm
X,Y,Z Repositioning Accuracy ±0.03mm
Spindle 3kw Air/ water cooling spindle
Spindle Speed 0-18000RPM/24000RPM
Guider Taiwan Hiwin Square Rail
Transmission Type XY gears pinion,Z axis with ø20mm ballscrews
Control System NC-studio control system
Motor Stepper motor
Inverter Sunfar Inverter
Collets 3.175mm/6mm/12.7mm
Software Artcam
Command G code*.u00*.mmg*.pl
Voltage 3P 380v, 50/60 Hz
Packing Size 3200X2200X1800mm
N.W. 1100kg
Warranty 24 months for machine with 24 hours on-line technical support







Optional parts:

1. Dust Collects
2. Water Chiller CW3000
3. Mach 3 / DSP
4. Servo Motor

5. rotary axis

6. different working area

7. semi-auto lubrication system

8. different power spindle

Stepper motor 1325 Aluminum CNC Router    For Furniture 0Stepper motor 1325 Aluminum CNC Router    For Furniture 1Stepper motor 1325 Aluminum CNC Router    For Furniture 2Stepper motor 1325 Aluminum CNC Router    For Furniture 3Stepper motor 1325 Aluminum CNC Router    For Furniture 4
