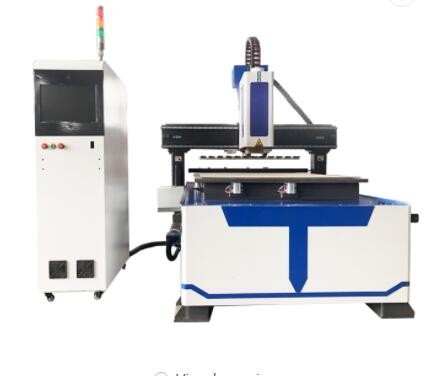

80000mm/min 24000rpm 3D Copper Aluminum CNC Router
Product Details:
Place of Origin: | China |
Brand Name: | Unitec |
Certification: | CE |
Model Number: | UT2060-GT3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|
Detail Information |
|||
XYZ Travel Size: | 2000X6000X100mm | Max Working Size: | 2000X6000X100mm |
---|---|---|---|
Table Size: | 2200X6500mm | Transmission Type: | XY/Z XY Rack/Z Ball Screw |
Guide Rail: | Linear Guide | Table Type: | T Slot With High Density PVC |
Spindle Power: | 7.5KW China Spindle With Constant Power | Spindle Speed: | 24000rpm |
High Light: | 80000mm/min Aluminum CNC Router,3500KG Aluminum CNC Router,24000rpm 3D CNC Router Machine |
Product Description
UT2060-GT3 3d Copper Aluminium Processing Stone Cnc Machine Router Table
1. This CNC router is widely used for cutting, engraving and drilling materials within dimension 4’X8′ such as MDF, Acrylic, PVC,Wood and Glass. If adding the 4 axis rotary setting, it can also engrave cylindrical parts, like column artwork.
2. The table structure is black PVC vacuum table and T-Slots, 6 working zones, controlled by manual valve, be easier to fix different size panel firmly, which can guarantee the working accuracy.
3. The CNC router controller of the machine is DSP A11, which is very easy to be operated and can match many kinds of software, such as type3, Alpha CAM and UcanCAM.
4. Application: advertising industry, musical instrument, such as 3D surface cutting, engraving.
Highlights
1. It can be used as a milling machine and punching machine without any interference. The cutting limit speed can reach 15m, which is superior to similar equipment, and the daily production of batch cutting can reach 400-600 square meters.
2. V-groove can be slotted in any shape and angle, including arc groove. The utility model solves the problem that the general slotting machine can only cut straight-line slots, and the unique floating cutter head patent technology of huidiao ensures that the slotting depth is uniform and the slotting precision is high when the aluminum plate surface is uneven and the aluminum cutting surface is not cleaned.
3. To reduce the equipment cost, owning a 2060gat4 is equal to owning a milling machine, a punch and a slotting machine, which saves the
equipment cost.
4. Save workshop space this equipment is multi-purpose, greatly saving workshop space.
5. Saving labor can save labor of two processes.
6. The optimization of production process only needs one positioning and clamping, which can automatically complete the blanking, punching,
punching, slotting and all processes.
7. Because the machine only needs one-time positioning and clamping, it is better than the traditional production process which requires three
clamping to complete the processing mode, greatly improving the positioning accuracy of processing.
8. To improve the efficiency, the equipment only needs one-time clamping, which can automatically complete the processing of three processes:
blanking, punching, slotting, reducing the time waste of aluminum plate secondary clamping, and improving the production efficiency.
9. The automatic programming free system avoids complex programming steps. It only needs to import CAD drawings into the control system of
engraving machine. It can work through simple settings, reduce the workload and the technical difficulty of operators
10. It adopts constant power high-speed air-cooled spindle, with rotation speed up to 24000rpm, strong rigidity, stable high-speed cutting without jitter, smooth section and maintenance free
XYZ Travel Size |
2000X6000X100mm |
Max Working Size |
2000X6000X100mm |
Table Size | 2200X6500mm |
Transmission Type | XY/Z XY rack/Z ball screw |
Guide Rail | Linear Guide |
Table Type | T Slot with High Density PVC |
Spindle Power | 7.5KW China Spindle with constant power |
Spindle Speed | 24000rpm |
Max Travel Speed |
80000mm/min |
Motor | Taiwan Delta servo motor |
Work Voltage | AC380V 50HZ |
Controller System | Ncstudio |
Processing Accuracy |
0.05mm |
Repeat Positioning Accuracy |
0.01mm |
File Format | G/PLT G code or PLT |
Overall Weight | 3500KG |
Overall Dimension | 3000X6800X1900mm |
