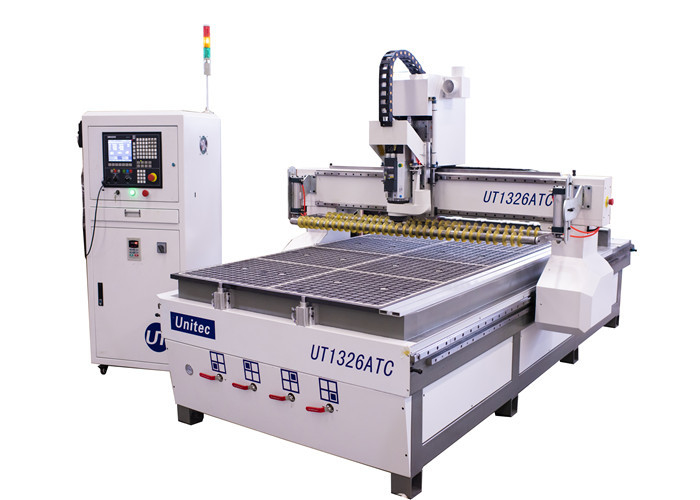

1326 ATC Engraving Machine

1326 ATC Engraving Machine
1326 ATC Engraving Machine 1326 ATC Engraving Machine

Large Image :  1326 ATC Engraving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1326ATC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Delivery Time: 25 working days
Detailed Product Description
Spindle Power: 9.0KW 9KW China ATC Spindle Or Italy HSD ATC Spindle Tool Changer: Linear Tool Changer With 8 Tool Positions
XYZ Travel Size: 1350X2900X220mm Spindle Speed: 24000rpm
Table Type: Vacuum Max Working Size: 1300X2600X220mm
Table Size: 1300X2600mm Guide Rail: Linear Guide
High Light:

1326 ATC Engraving Machine


24000rpm ATC Engraving Machine


9KW ATC Engraving Machine

Good Character 1326 Cnc Router Atc Engraving Machine For Wood And Hard Pvc


Features of cnc router wood

1. Adopt constant power 1.5kw water cooling spindle  high speed, low noise and long life

2. Taiwan HIWIN square linear guide

3. Popular NC studio control and DSP control for optiona

4. Cast iron structure

5. Mist water cooling sprayer and flume will cool the cutter


Applications and Material

Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc

Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc

ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel


XYZ Travel Size 1350X2900X220mm
Max Working Size 1300X2600X160mm
Table Size 1300X2600mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer Linear Tool Changer
Spindle Speed 24000rpm


Max Travel Speed

Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System / Ncstudio or Syntec


Processing Accuracy



Repeat Positioning Accuracy

File Format G/PLT G code or PLT
Overall Weight 1800KG
Overall Dimension 2000X3600X1900mm

1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.

1326 ATC Engraving Machine 01326 ATC Engraving Machine 11326 ATC Engraving Machine 21326 ATC Engraving Machine 31326 ATC Engraving Machine 41326 ATC Engraving Machine 51326 ATC Engraving Machine 61326 ATC Engraving Machine 71326 ATC Engraving Machine 81326 ATC Engraving Machine 9
