Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

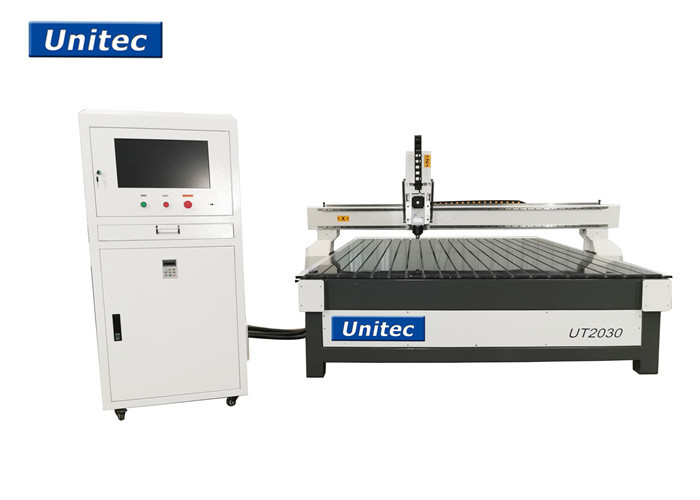

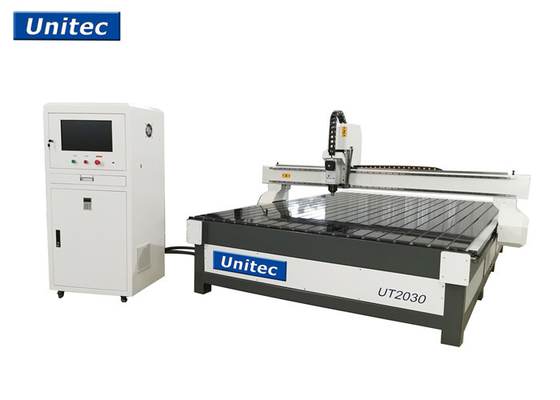

Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router

Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router
Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router

Large Image :  Vacuum Table 3 Axis 2030 40000mm/min Wood Carving CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030A-OC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Guide Rail: Linear Guide XYZ Travel Size: 2000 X 3000 X 220mm
Max Working Size: 2000 X 3000 X 220mm Spindle Power: 5.6KW Italy Elte Spindle Or China Spindle
Table Size: 2050 X 3100mm Transmission Type: XY/Z XY Rack/ Z Ball Screw
Table Type: Vacuum Vacuum Pump: 7.5KW/4.8KW 7.5KW Water Recycle Cool Pump Or 4.8KW Air Pump
High Light:

40000mm/min Wood Carving CNC Router

,

2mx3m Wood Carving CNC Router

,

2030 3 Axis CNC Router

UT2030 2030 3 Axis 2030 CNC Router USB Wood Carving



1. Welded steel bed structure
2. Taiwan HIWIN square guide rails
3. helical rack transmission for X and Y axis,
4. Taiwan TBI ball screw for Z axis
5. 3.5KW air cooling spindle with BEST brand inverter
6. stepper motor and driver
7. DSP controls sytem
8. 2 collects and 15 pieces cutters
9. exporting plywood packages.



1. Durable Structure And Aluminum table
Cast iron lathe bed.Aluminum with PVCworking table Stable Running with less vibration.

2.  Strong Gantry Design

With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

3. Large Power Water Cooling Spindle

Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,iron plate engraving but also for woodworking.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothly and clear by large power spindle.

4. Guide Rail And Transmission

XYZ three axis are with linear square guide rail,Hiwin,Taiwan.Ball screws transmission for all axis.Durable running with Higher accuracy.

5. Dust-Proof Design For XZ -Axis
Dust-Proof design for xZ-axis,protect the guide rail and ball screws from the Dust&Dirt, help to ensure machine working performance.

6. Famous Motor And Driver

China famous leadshine steppermotor and Leadshine stepper driver for xYZ-axis,high precision, fast speed and more stable,dual motor Driven Y axis with traveling speed up to more than 10000mm/min.

7. Control System
Nc-studio control system,supporting xYZ-axis moving together, showing the processing path more convenient. Besides, we also have other optional controller,such as Mach 3, DSPA11E, etc.

8. High End Toolbox
Rationalized placement of the electronic parts Optimized heat dissipation effect.Adopt high quality electronic parts,minimizing fault rate, Adopt hi h flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

9. Favorable Compatibility Softwares
Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.





XYZ Travel Size

2000 X 3000 X 220mm



Max Working Size

2000 X 3000 X 220mm
Table Size 2050 X 3100mm
Transmission Type XY/Z XY rack/ Z ball screw
Guide Rail Linear Guide
Table Type T slot

Spindle Power 5.6KW Italy Elte Spindle or China Spindle

Spindle Speed 18000rpm



Max Travel Speed

40000mm/min
Max Work Speed 25000mm/min
Motor Easy Servo otor
Work Voltage AC380V 50HZ
Controller System China Leyu Or Taiwan Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1500KG
Overall Dimension 3700 X 2300 X 2000mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. DSP,or Ncstudio or Mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
