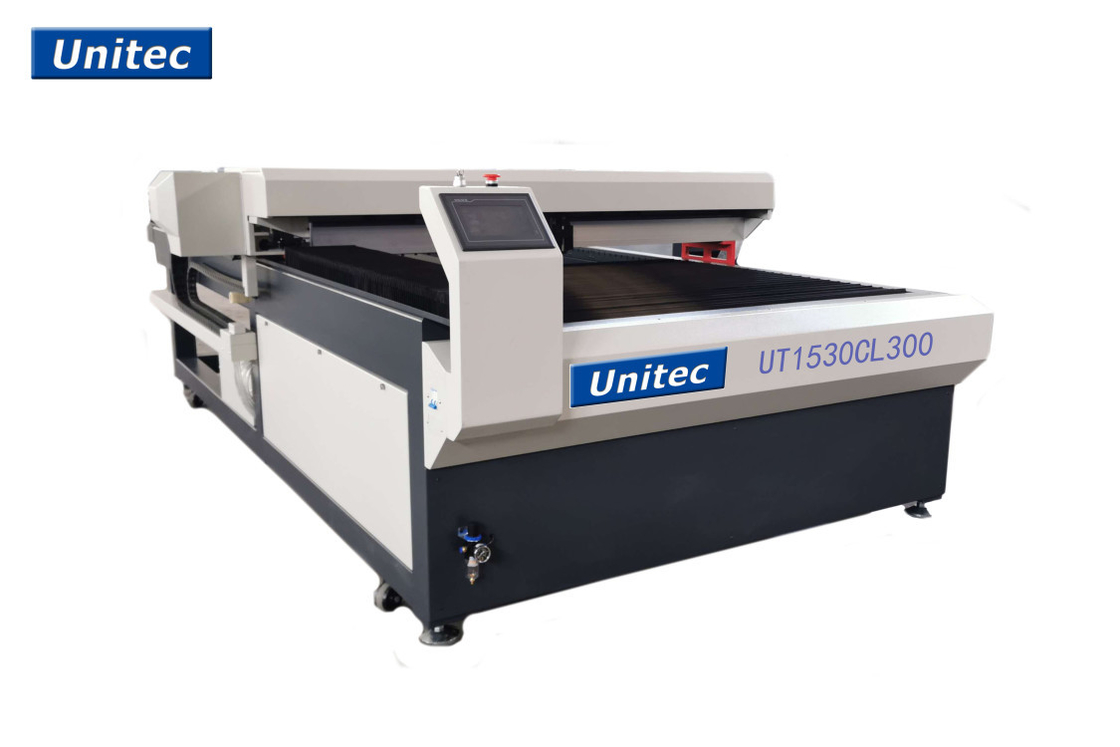

UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine

UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530CL300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Get Best Price Contact Now

Detail Information

Working Size: 1500mm X 3000mm Laser Tube: 300W SLW Laser Tube; CO2
Motor: Japan Mitsubishi Servo Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: < 40mm(acrylic)
Transmission Type: Taiwan TBI Ball Screw And TBI Linear Guide Repeat Position Accuracy: 0.025mm
High Light:

UT1530CL300 CO2 Laser Cutting Machine

,

300W CO2 Laser Cutting Machine

,

18000mm/min CO2 Laser Cutting Machine

Product Description



UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine 0

UT1530CL150X2 Laser Machine

CO2 LASER Features
1. Advanced Leetro or Ruida control system makes the machine easy to operate.
2. Adopt high-end technology, the best engraving and scanning accuracy, it can clearly engrave on 1mm letters.
3. Taiwan Hiwin rail guide and high quality belt make the engraving and cutting smooth.
4. Optional Motorized rising up & down table
5. Optional rotary clamp for process cylindrical objects.


The future development of CNC laser cutting machine industry, from the perspective of applicable industries and enterprises, the key development scope of CNC laser cutting machine will be around the following aspects:



1. High-speed, precision CNC lathe, turning center and compound processing machines with four-axis or above linkage. Mainly meet the needs of industries such as aerospace, aviation, instruments, meters, electronic information and biological engineering.

2. High-speed, high-precision CNC milling and boring machine and high-speed, high-precision vertical and horizontal machining center. Mainly meet the processing requirements of large-scale complex structural brackets, shells, boxes, light metal material parts and precision parts of automobile engine cylinder heads and aerospace, high-tech industries.

3. Heavy-duty and super-heavy-duty CNC machine tools: CNC floor milling and boring machines, heavy-duty CNC gantry boring and milling machines and gantry machining centers, heavy-duty CNC horizontal lathes and vertical lathes, CNC heavy-duty hobbing machines, etc. These products meet energy, aerospace and military , The main engine manufacturing of ships, heavy machinery manufacturing, large mold processing, steam turbine cylinder block and other industry parts processing needs.

4. CNC grinders: CNC ultra-precision grinders, high-speed high-precision crankshaft grinders and camshaft grinders, various types of high-precision high-speed special grinders, etc., to meet the needs of precision ultra-precision machining.

Applications and Materials
Signmaking Industry: Acrylic, MDF, Wood,etc



UT1530CL300
Working Size1500mm X 3000mm
Laser Tube300W SLW laser tube; CO2
MotorJapan Mitsubishi Servo
Max Engraving Speed64000mm per min
Max Cutting Speed18000mm per min
Max Cutting Thickness< 40mm(acrylic)
Transmission TypeTaiwan TBI ball screw and TBI linear guide
Repeat Position Accuracy0.025mm
Working Temperature0—45 degrees
Power SupplyAC 220v ±10%; 50HZ/60HZ
File FormatDXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption<1500w
Cooling systemChina Special Water Chiller
ControllerOriginal China Ruida controller
Weight900kgs




Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.


Buying Guide
1. Consult:
We will recommend the most suitable CNC laser engraving machine to you after being informed by your requirements.
2. Quotation:
We will offer you with our detail quotation according to the consulted laser machine. You will the most suitable CNC laser cutting machine specifications, the best CNC laser cutting machine accessories and the affordable CNC laser cutter price.
3. Process Evaluation:
Both sides carefully evaluate and discuss all the details of the order to exclude any misunderstanding.
4. Placing an order:
If you have no doubts, we will send the PI (Proforma Invoice) to you, and then we will sign a contract with you.
5. Production:
We will arrange the CNC laser cutter production as soon as receiving your signed sales contract and deposit. The latest news about production will be updated and informed to the CNC laser engraver buyer during the production.
6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete CNC laser cutter will be tested to make sure they can work very well before out of factory.
7. Delivery:
We will arrange the delivery as the terms in the contract after the confirmation by the buyer.
8. Custom Clearance:
We will supply and deliver all the necessary shipping documents to the buyer and ensure a smooth customs clearance.
9. Support and Service:
We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have door-to-door service in some areas.

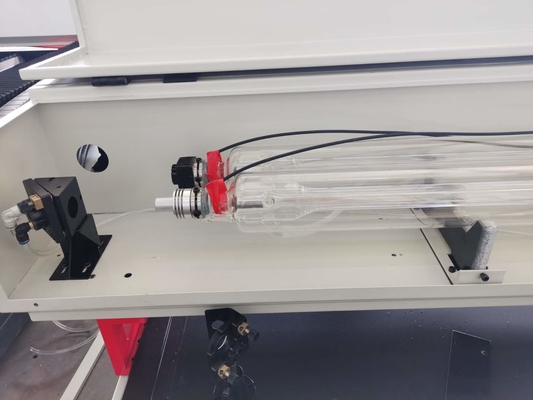

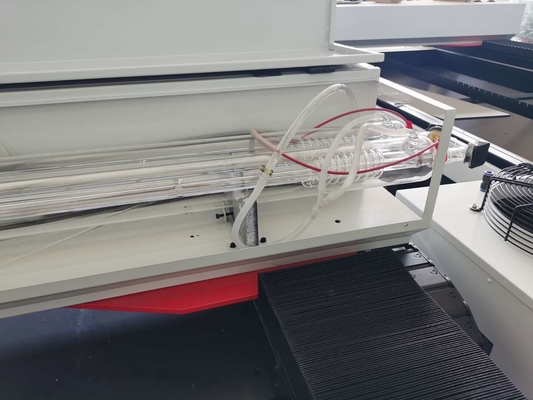

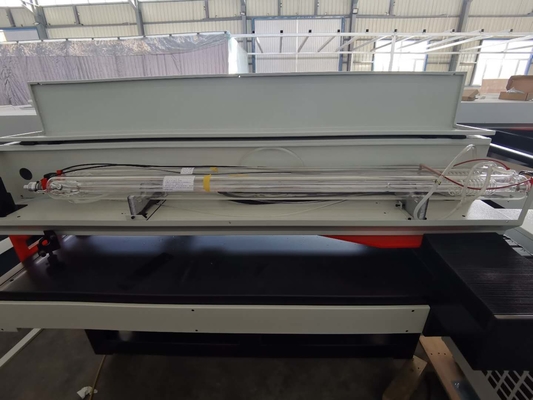

300W CO2 with 2 pcs of 150w tubes
UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine 1
UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine 2
Mitsubishi Servos
TBI ball screw




Want to Know more details about this product
I am interested in UT1530CL300 300W SLW Laser Tube CO2 Laser Cutting Machine could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
