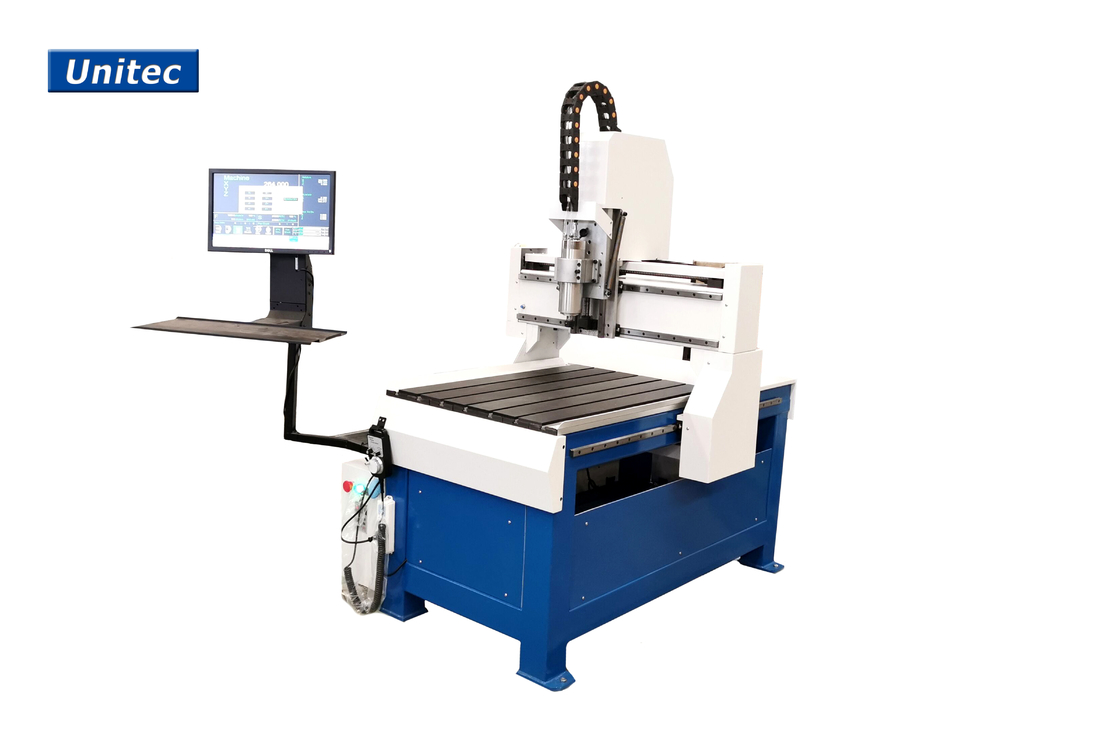

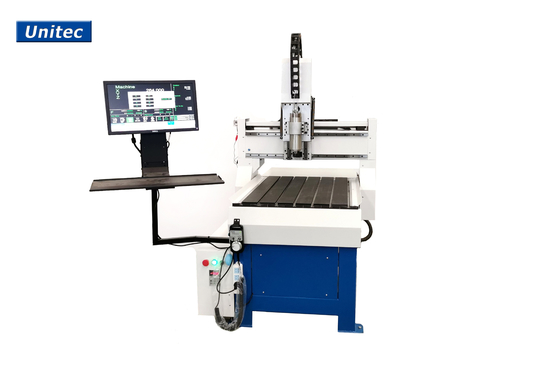

600mmX1200mm Sign Making CNC Router For Acrylic MDF Wood
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT0612 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Working Size: | 600mm X 1200mm | Z Travel Height: | 150mm |
|---|---|---|---|
| Spindle Power: | 800W China Water Cool Spindle | Controller: | Ncstudio DSP Or Mach3 |
| Motor: | Stepper | ||
| High Light: | 600mmX1200mm Sign Making CNC Router,UT0612 Sign Making CNC Router,Unitec Small CNC Engraving Machine |
||
Product Description
| XYZ Travel Size | 600X1200X180mm | |
| Max Working Size | 600X1200X180mm | |
| Table Size | 650 X 1220mm | |
| Transmission Type | XYZ ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | T SLOT TABLE | |
| Spindle Power | 800W china water cool spindle | |
| Spindle Speed | 24000rpm | |
| Max Travel Speed | 7000mm/min | |
| Max Work Speed | 5000mm/min | |
| Motor | stepper motor | |
| Work Voltage | AC 220V 50HZ | |
| Controller System | Ncstudio or DSP | |
| Processing Accuracy | ±0.05mm | |
| Repeat Positioning Accuracy | ±0.01mm | |
| File Format | G code or PLT | |
| Overall Weight | 350KG | |
Applications and Materials
Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc
Sign Industry: Channel Letter,Mini Letter,signs, etc
Crafts Industry: solid wood,artificial stone,marble,sandstone,aluminum composite panel,bamboo,soft metal,PVC,acrylic,double color board, etc
Highlights
Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
Various of table styles makes convenient clamping materials and improves overall production efficiency
Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
- accessories which will ensure the overall running performance
Strict compliance with CE electrical standards for circuit design and production, and all
Parts have safe and reliable protection device.
