2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

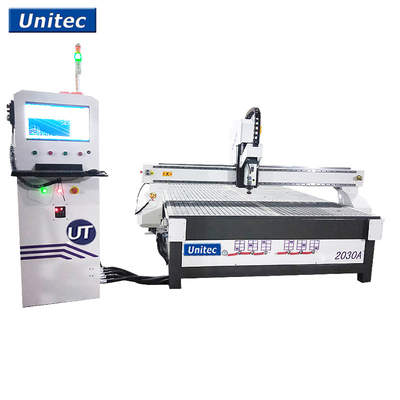

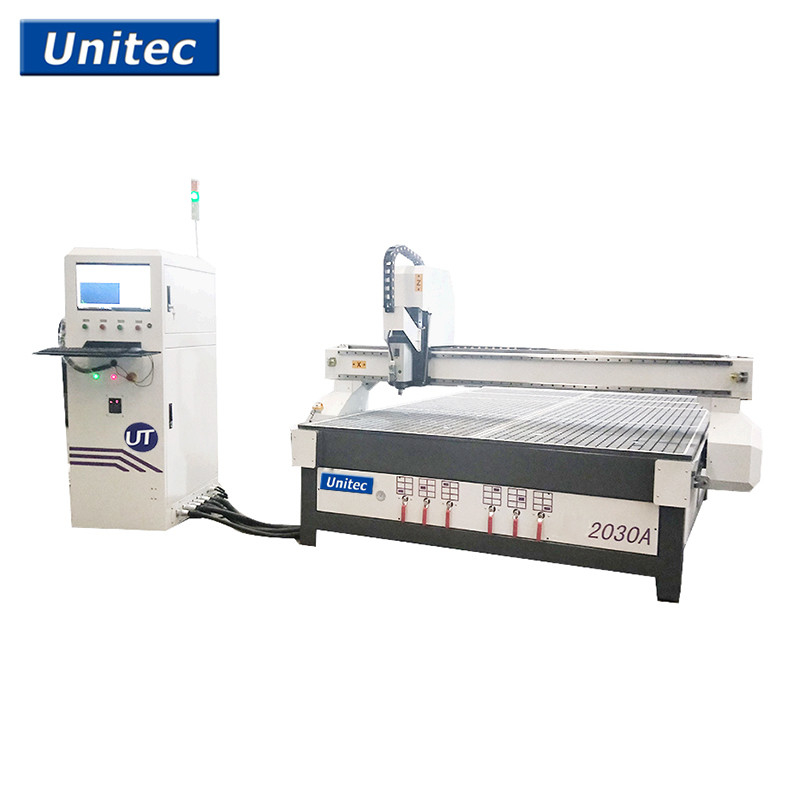

2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM

2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM
2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM 2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM

Large Image :  2mX3m Heavy Duty CNC Router For MDF Solid Wood Acrylic ACP ACM

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 2m X 3m Z Max Travel Height: 220MM
Motor: Easy Servo Table: Vacuum
Spindle: 6KW HSD Or 5.6KW Elte Spindle Controller: Ncstudio
High Light:

Heavy Duty CNC Router

,

UT2030A Heavy Duty CNC Router

,

6KW HSD Heavy Duty CNC Router

UT2030A Factory supply woodworking CNC router/Wood cutting machine for solidwood,MDF,aluminum,alucobond,PVC



Technical parameters



XYZ Travel Size

2050X3050X200mm



Max Working Size

2000X3000X150mm
Table Size 2050X3000mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 6KW/5.6EL China air cool spindle or 5.6KW Italy Air cool spindle
Spindle Speed 18000rpm



Max Travel Speed

30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System /DSP Ncstudio or DSP



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 2200KG
Overall Dimension 2500X3700X1900mm



1. Machine body using high strengthen tube welding,installation surface milling carefully by cnc machine,to ensure stable and non-deformation.

2. Not only engraving three-dimentional arts crafts and furniture parts,but also can engraving panel embossment.it using increase and widen rotary axis can meet many kinds of customized engraving requirement.

3. Four axis can meet many kinds of customized engraving requirements.



Applications and Materials

  • Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
  • Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
  • PVC Crafts Industry: solid woodartificial stonemarblesandstonealuminum composite panelbamboosoft metalPVCacrylicdouble color board, etc

Certificate

  • CE certificated for European countries

  • CCVO SONCAP certificated for Nigeria customers

  • FTA certificate for Pakistan customers

  • SASO certificate for Saudi Arabic customers

  • Form E certificate for Indonesia and Vietname customers
