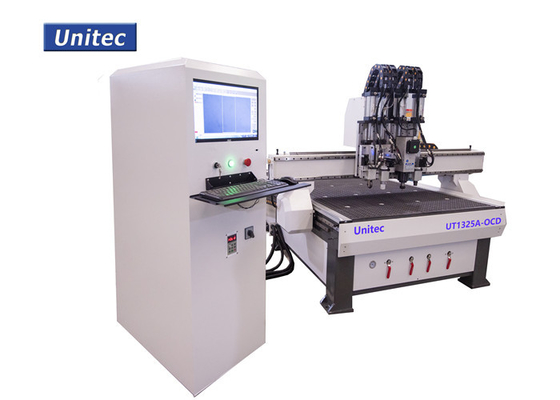

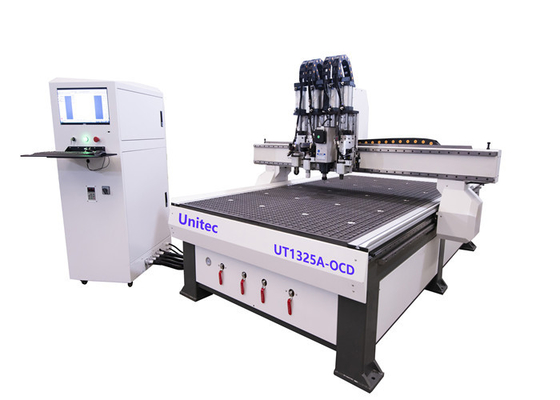

40000mm/min Drag Creasing CNC Router

40000mm/min Drag Creasing CNC Router
40000mm/min Drag Creasing CNC Router 40000mm/min Drag Creasing CNC Router

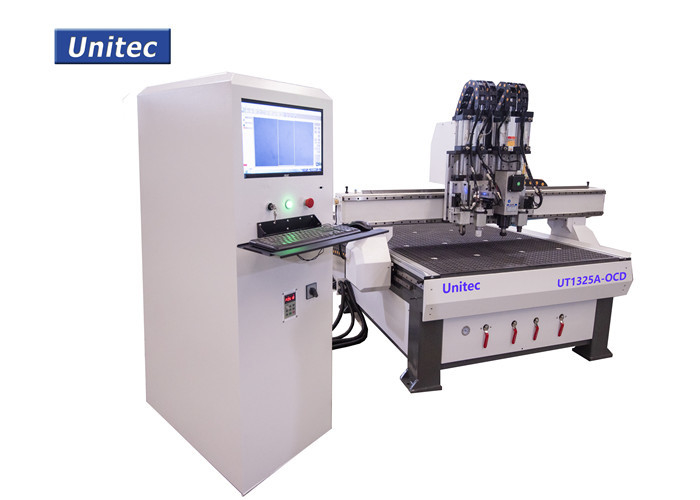

Large Image :  40000mm/min Drag Creasing CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325A-OCD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Spindle: 5.6KW Italy Elte Oscillating: Leyu Oscillating Creasing Draging Head
Motor: Easy Servo Controller: Leyu
Table Size: 1300 X 2600mm
High Light:

Oscillating Drag Creasing CNC Router

,

18000rpm Drag Creasing CNC Router

,

40000mm/min Drag Creasing CNC Router

Oscillating Drag Creasing CNC Router for KT board Corrugated board





1. 5.6KW ELTE Air cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.
2. Thicken square pipe structure, well welded,no distortion for whole structure.
3. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
4. Leyu controller system with USB interface, working without connecting with computer during working and easy to control.
5. This machine can engrave any design,support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
6. Adopt high speed step motor Max speed is 20M/MIN.
7. Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on





XYZ Travel Size

1300 X 2500 X 220mm



Max Working Size

1300 X 2500 X 220mm
Table Size 1300 X 2600mm
Transmission Type XY/Z XY rack/ Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Elte Spindle or China Spindle
Knife System Oscillating + Creasing + Drag Knife + CCD camera
Spindle Speed 18000rpm



Max Travel Speed

40000mm/min
Max Work Speed 25000mm/min
Motor Easy Servo otor
Work Voltage AC380V 50HZ
Controller System China Leyu Or Taiwan Syntec



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT G code or PLT
Overall Weight 1500KG
Overall Dimension 2300 X 3200 X 1900mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.
