2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass

2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass
2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass

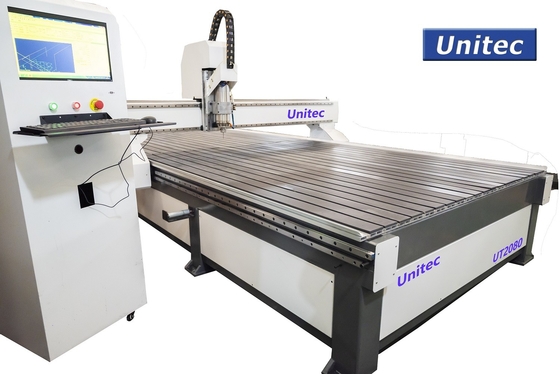

Large Image :  2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2080

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: steel pipe +plywood
Delivery Time: 20 working days
Detailed Product Description
Working Size: 2M X 8M Z Travel Height: 150mm
Motor: Easy Servo Motor Linear Guide: Taiwan CSK
Spindle: 5.5KW China Water Cool Spindle Controller: Ncstudio
High Light:

2m x 8m large format cnc router

,

2m x 8m aluminum cnc router

,

servo motor large format cnc router

Applications and Materials

Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc

Sign Industry: Channel Letter,Mini Letter,signs, etc

Crafts Industry: solid wood,artificial stone,marble,sandstone,aluminum composite panel,bamboo,soft metal,PVC,acrylic,double color board, etc



Highlights



Integral welded Frame, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

Various of table styles makes convenient clamping materials and improves overall production efficiency

Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.

Main configurations adopts imported accessories which will ensure the overall running performance

Strict compliance with CE electrical standards for circuit design and production, and all

Parts have safe and reliable protection device.



XYZ Travel Size 2000X8000X150mm
Max Working Size 2000X8000X150mm
Table Size 2000X8000mm
Transmission Type XY /Z XY Rack/ Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power 5.5KW China Water Cool Spindle/5.6kw Italy Elte Spindle
Spindle Speed 24000/18000rpm
Max Travel Speed 14000mm/min
Max Working Speed 12000mm/min
Motor Easy Servo Motor or Servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 1800KG
Overall Dimension 2650X4500X1600mm





2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 02m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 12m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 22m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 3

2m X 8m Large Format Cnc Router For Drilling Steel Aluminum Acp Brass 4
