Full Ce Standard 380v Computerized Woodworking Cnc Router Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

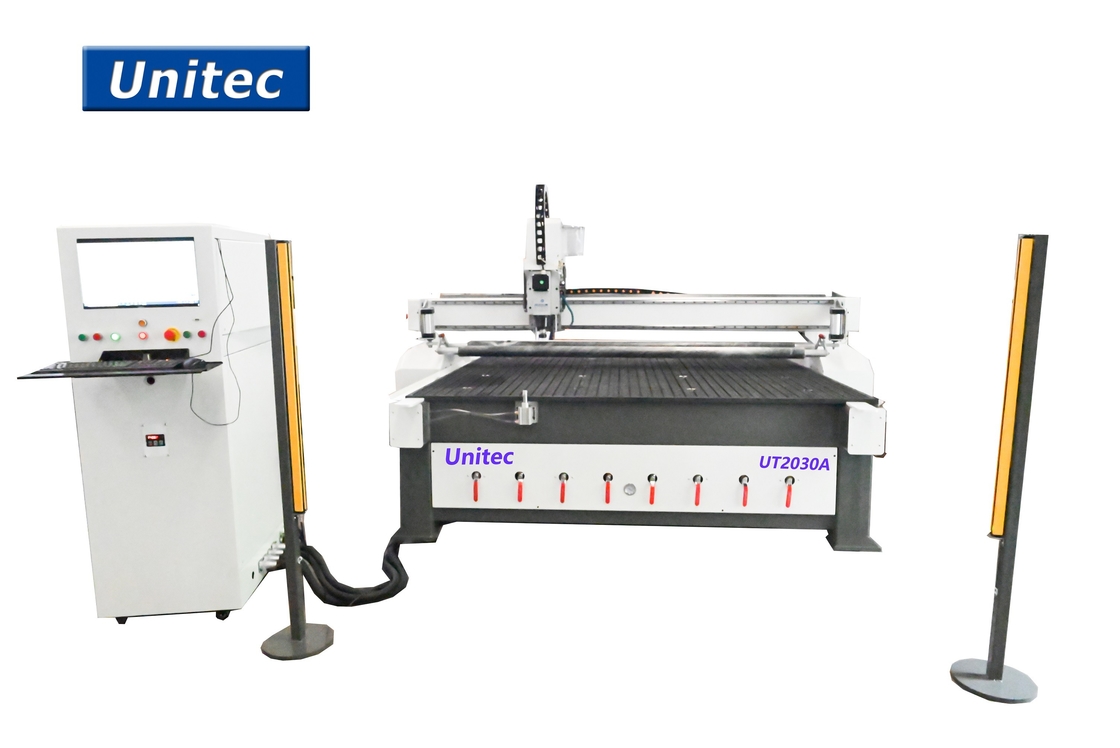

Full Ce Standard 380v Computerized Woodworking Cnc Router Machine

Full Ce Standard 380v Computerized Woodworking Cnc Router Machine
Full Ce Standard 380v Computerized Woodworking Cnc Router Machine

Large Image :  Full Ce Standard 380v Computerized Woodworking Cnc Router Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Packaging Details: Plywood and Steel pipe
Detailed Product Description
Working Size: 2100MM X 3100MM Z Travel Height: 300MM
Spindle: 6KW HSD Spindle Table: Vacuum Table With 2 Pumps
Guide Way: Taiwan PMI Linear Guide Light Barrier: 100CM High Laser Beam
Controller: Ncstudio
High Light:

ce woodworking cnc router machine

,

computerized woodworking cnc router machine

,

380v woodworking cnc router machine

Applications and Materials





Woodworking Industry: Automotive Trim,Stereo Equipment,Instruments,Office Furniture,Closet,etc





Highlights



1. Strict Quality Control with full CE standard

2. Stable and reliable processing performance

3. High rigidity machine frame and gantry with 10mm thick steel pipe

4. Hard PVC vacuum table for long life using

5. Friendly using controller



XYZ Travel Size

2050X3050X200mm



Max Working Size

2000X3000X150mm
Table Size 2050X3000mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type vacuum
Vacuum Pump 7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power 5.6KW Italy Air cool spindle
Spindle Speed 18000rpm

Max Travel Speed

30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP

Processing Accuracy

±0.05mm

Repeat Positioning Accuracy

±0.01mm
File Format G code or PLT
Overall Weight 2200KG
Overall Dimension 2500X3700X1900mm
