Cnc High Accuracy Ball Screw 150w Co2 Laser Engraving Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1325CL150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Plywood and steel pipe |
|
Detail Information |
|||
| Working Size: | 1300mm X 2500mm | Laser Power: | 150W CO2 Laser Tube |
|---|---|---|---|
| Transmission: | Taiwan TBI Ball Screw | Guide Way: | Taiwan TBI Linear Guid |
| Motor: | Japan Mitsubishi Servo | Controller: | Ruida |
| High Light: | 150w co2 laser engraving cutting machine,150w cnc co2 laser cutting machine,cnc co2 laser engraving cutting machine |
||
Product Description

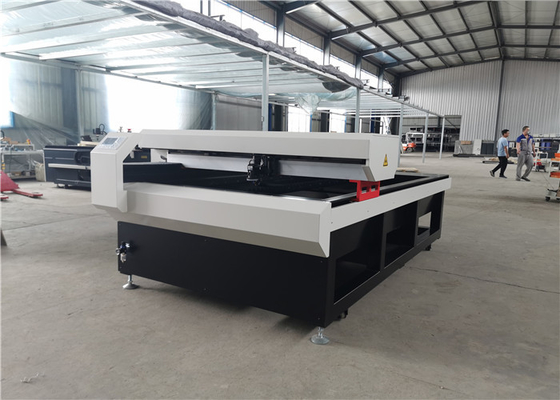

UT1325CL150 Cutting-Edge 1325 CO2 Laser CNC Engraving And Cutting Machine
Applications and Materials
Signmaking Industry: Acrylic, MDF, Wood,etc
| Item | Description | Marks |
| Working Size | X:1200mmY:2500mm | Machine body produced by high accuracy machine center |
| Laser Cutting Head | High Accuracy Head with quick loading function | With Double Focus system |
|
Mechanical Driving System |
X/Y Ball Screw | Taiwan TBI |
| X/Y/Z Linear Guide | Taiwan TBI | |
| Special Cool System |
Compressor Overloading Alarm Temperature Overheat Alarm Temerature Control Accuracy ±0.5℃ |
Guangzhou Teyu |
| Motion Control System | Off line Control | Ruida |
| X ,Y Servo Driver | MR-JE-40A | Japan Mitsubishi |
| Z driver | DMD-402A | LEETRO |
| Main Contactor | LS | Imported from Korea |
| Origin Switch | PANASONIC | Japan Panasonic |
| Laser Tube Power (W) | 150W | |
| Laser Beam Quality | M2≤1.1 | |
| Working Size(mm) | 1200×2500mm | |
| Max Table Loading Weight (kg) | 200 | |
| Max Acrylic Cut Thickness(mm) | 40 | |
| Max Location Speed (m/min) | 20 | |
| XY Location Accuracy(mm/m) | ±0.025 | |
| XY Repeat Location Accuracy(mm) | ±0.005 | |
|
Travel Size
|
X-(mm) | 1200 |
| Y-(mm) | 900 | |
| Z-(mm) | 40 | |
| Voltage (50/60Hz) | 220V single phase | |
| Total Power Consumption | 2KW | |
| Assistant Cutting Air Pressure (MPa) | 0.6 | |
CO2 cutting head (Nonmetal Industries):
1. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2. Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3. Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4. Clothing: leather,cloth,texitle,shoes,fabric,etc
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability

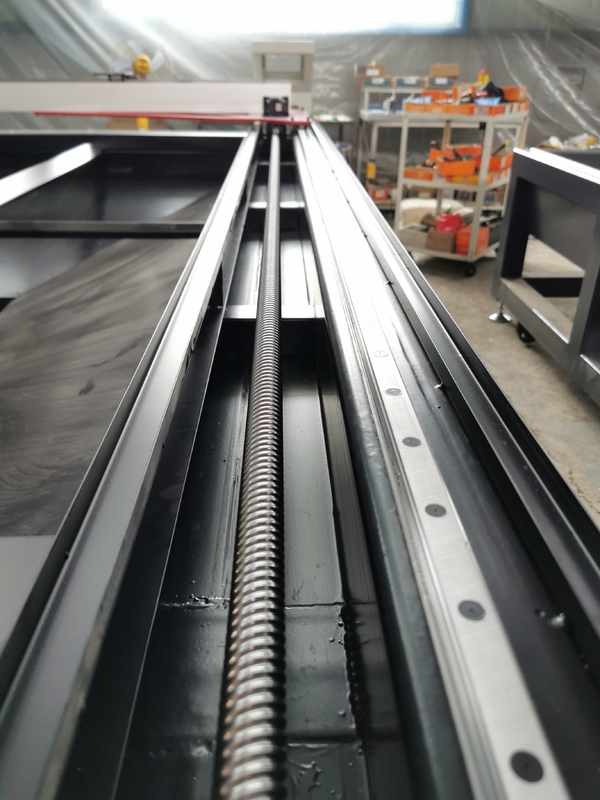

2. Driven by Taiwan TBI ball screw with TBI linear Guide
3. Japan Mitsubishi Servo motor and driver
4. Reliable CO2 glass laser tube
5. Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.
