Flatbed Cutter ATC CNC Router Machine 2m X 3m With Oscillating Knife Creasing
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2030ATC-OCD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Steel pipe+plywood |
| Supply Ability: | 100 unit per month |
|
Detail Information |
|||
| Working Size: | 2m X 3m | Spindle: | 9KW China ATC Spindle+Oscillating Knife+CCD |
|---|---|---|---|
| Table: | Vacuum Table | Motor: | Taiwan Delta Servo+Japan Shimpo Reducer |
| Tool Changer: | Linear ATC | Controller: | Leyu |
| High Light: | Flatbed Cutter ATC CNC Router,Oscillating Knife Creasing CNC Router,2m X 3m ATC CNC Router |
||
Product Description

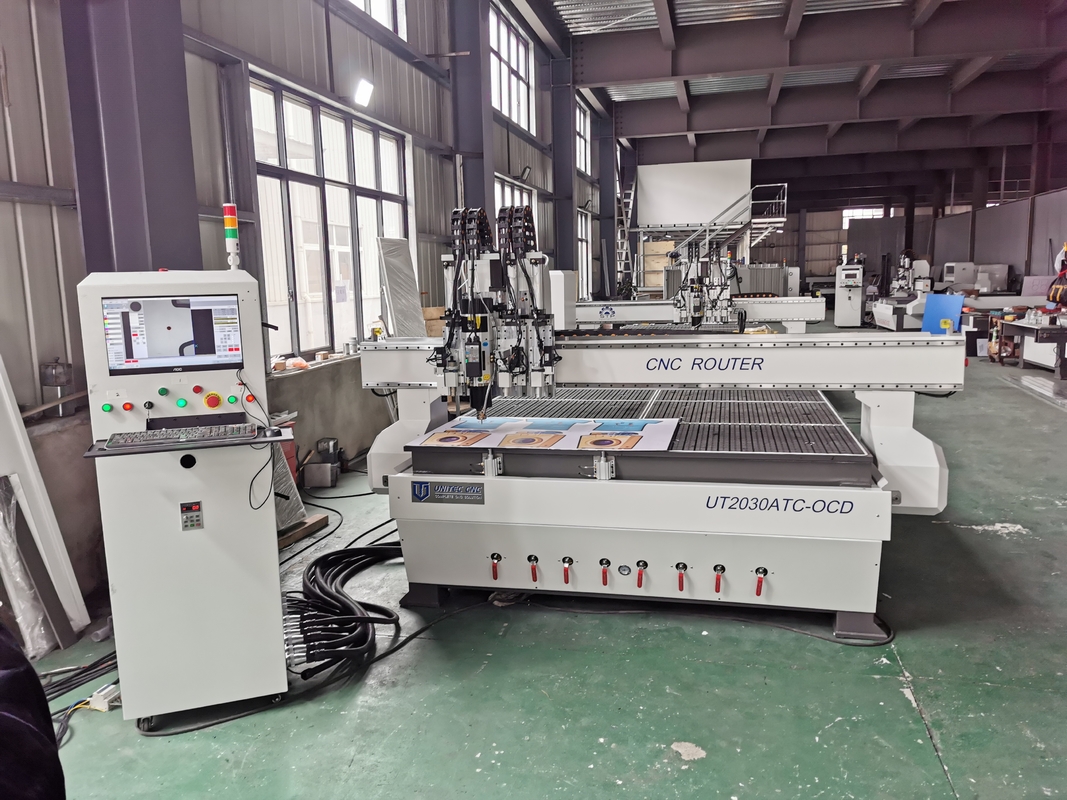

UT2030ATC-OCD
Description
This is a multifunctional ATC CNC router machine with a CCD camera system. Besides, it is also equipped with an oscillating cutter on the head. Therefore, this automatic tool changing CNC router machine can cut not only common wooden boards but also flexible and soft materials, like paper, leather, fabric, etc. Furthermore, the CCD camera system can detect the edges of images automatically, which help cut out irregular shapes of printed boards.
Features
1. Using a new type CCD system, it can scan the image edges with strong recognition ability, fast positioning speed, and high positioning accuracy. This helps to cut out irregular printed shapes from a wooden board.
2. The oscillating cutter enables this CNC machine to cut various flexible materials, such as fabric, leather, cloth, paper, rubber, etc.
3. It can cut out large-area images from a wooden board automatically, precisely and quickly. One operator can run several machines at the same time, which saves human labor and improves work efficiency.
4. Equipped with a 18000rpm automatic tool change spindle, it can change tools fast with low noise and large torque.
| XYZ Travel Size | 2100X3300X210mm | |
| Max Working Size | 2000X3000X180mm | |
| Table Size | 2100X3100mm | |
| Transmission Type | XY rack/ Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | vacuum | |
| Vacuum Pump | 7.5KW water recycle cool pump or 4.8KW air pump | |
| Spindle Power | 9KW China ATC spindle or Italy HSD ATC spindle | |
| CCD | With edge detecting function | |
| Oscillating | 3mm amplitude | |
| Tool Changer | Linear Tool Changer | |
| Spindle Speed | 24000rpm | |
| Max Travel Speed | 40000mm/min | |
| Max Work Speed | 25000mm/min | |
| Motor | Taiwan Delta AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | Leyu Controller | |
| Processing Accuracy | ±0.05mm | |
| Repeat Positioning Accuracy | ±0.01mm | |
| File Format | G code or PLT | |
| Overall Weight | 2400KG | |
| Overall Dimension | 2650X3800X1900mm | |
