1300 X 90 CO2 Laser Cutting Machine For Beginner 220V Single Phase
Product Details:
Place of Origin: | China |
Brand Name: | Unitec |
Certification: | CE |
Model Number: | UT1309CL150 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|
Detail Information |
|||
Max Table Loading Weight (kg): | 200 | Max Acrylic Cut Thickness(mm): | 40 |
---|---|---|---|
Max Location Speed (m/min): | 20 | X\Y Location Accuracy(mm/m): | ±0.025 |
X\Y Repeat Location Accuracy(mm): | ±0.005 | Voltage (50/60Hz): | 220V Single Phase |
Total Power Consumption: | 2KW | Assistant Cutting Air Pressure (MPa): | 0.6 |
High Light: | CO2 Laser Cutting Machine for Beginner,CO2 Laser Cutting Machine 1300 X 90,220V CO2 Laser Cutting Machine |
Product Description

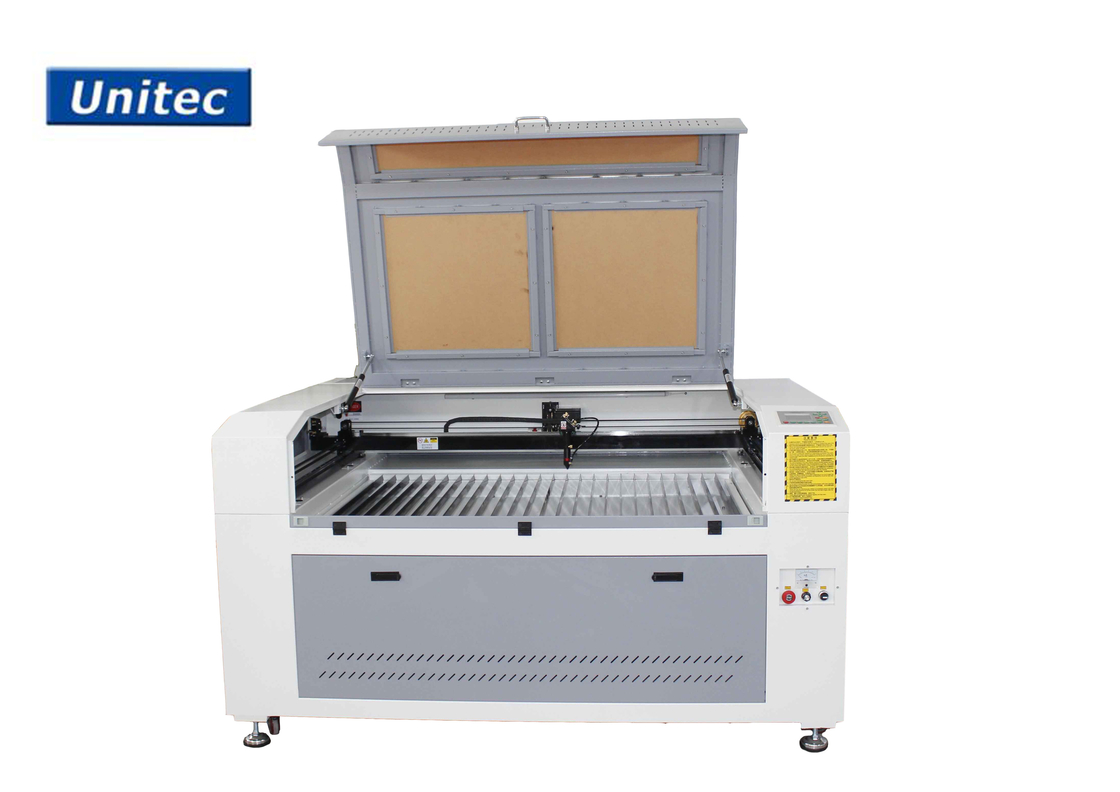

UT1309CL150 CO2 laser cutting machine
Description
The best price CNC laser wood cutter machine for small business. It is an industrial-grade laser machine, both for wood cutting and engraving. We also call it laser engraver for wood, laser cutter for wood.
Features
1. Fully enclosed design, safer operation It adopts a new fully enclosed design with an anti-corrosive paint shell. The highly-transparent acrylic observation window is more intuitive to observe the cutting process.
2. Square tube welded machine bed, rigid and stable It adopts international digital control technology to realize rapid curve cutting, improving work efficiency. The integrated design frame structure ensures stable and reliable operation.
3. Support multiple formats of image files The CO2 laser cutter supports multiple formats of image files, including PLT, DXF, BMP, DST, etc. It is also compatible with many design software.
4. High quality laser beam It uses high-quality laser with outstanding laser beam quality, which ensure rapid cutting and engraving speed, stable and durable operation, and high cost performance.
Item | Description | Marks |
Working Size | X:1200mmY:900mm | Machine body produced by high accuracy machine center |
Laser Cutting Head | High Accuracy Head with quick loading function | With Double Focus system |
Mechanical Driving System |
X/Y Ball Screw | Taiwan TBI |
X/Y/Z Linear Guide | Taiwan TBI | |
Special Cool System |
Compressor Overloading Alarm Temperature Overheat Alarm Temerature Control Accuracy ±0.5℃ |
Guangzhou Teyu |
Motion Control System | Off line Control | Ruida |
X ,Y Servo Driver | MR-JE-40A | Japan Mitsubishi |
Z driver | DMD-402A | LEETRO |
Main Contactor | LS | Imported from Korea |
Origin Switch | PANASONIC | Japan Panasonic |
Laser Tube Power (W) | 150W | |
Laser Beam Quality | M2≤1.1 | |
Working Size(mm) | 1200×900 | |
Max Table Loading Weight (kg) | 200 | |
Max Acrylic Cut Thickness(mm) | 40 | |
Max Location Speed (m/min) | 20 | |
XY Location Accuracy(mm/m) | ±0.025 | |
XY Repeat Location Accuracy(mm) | ±0.005 | |
Travel Size
|
X-(mm) | 1200 |
Y-(mm) | 900 | |
Z-(mm) | 40 | |
Voltage (50/60Hz) | 220V single phase | |
Total Power Consumption | 2KW | |
Assistant Cutting Air Pressure (MPa) | 0.6 |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2. Driven by Taiwan TBI ball screw with TBI linear Guide
3. Japan Mitsubishi Servo motor and driver
4. Reliable CO2 glass laser tube
5. Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.
