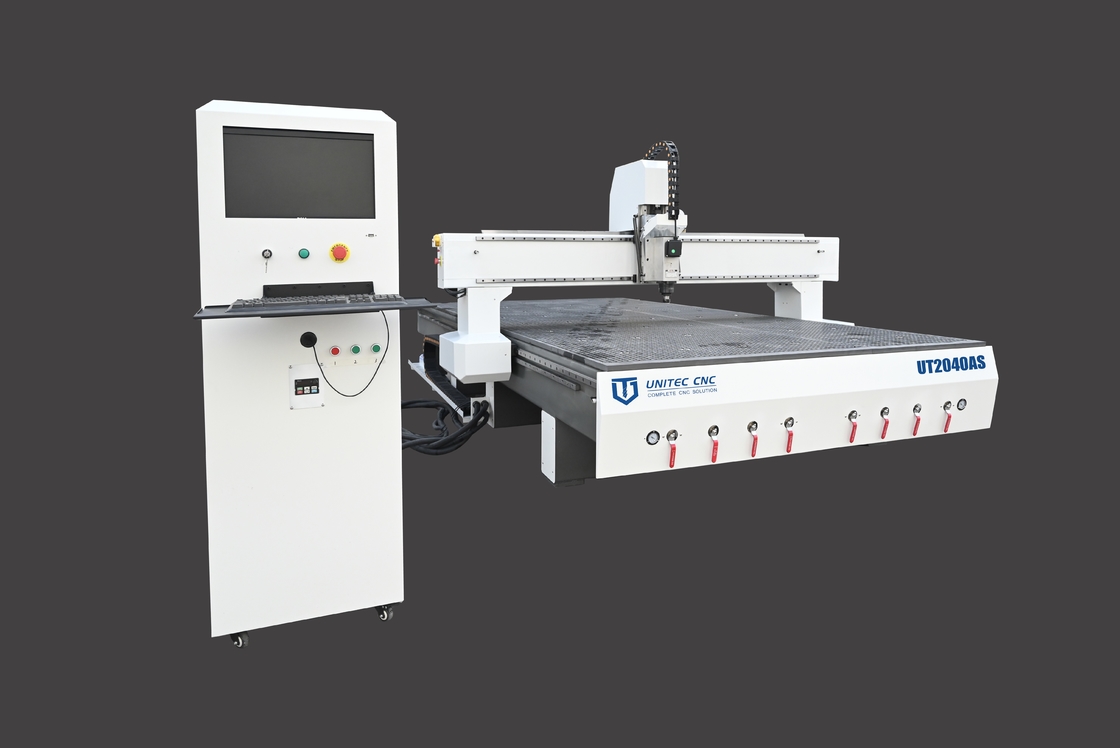

• Heavy Duty 3 axis 2040 wood carving machine
Heavy Duty 3 axis 2040 wood carving machine

Heavy Duty 3 axis 2040 wood carving machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT2040AS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood + steel pipe
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Working Size: 2000mm X 4000mm Spindle: 5.6kw Italy Elte
Table: T Slots With Thick Aluminum Profile Motor: Taiwan Delta Servo Motor
Guide Rail: Taiwan CSK Controller: Ncstudio
Cnc Or Not: Yes Voltage: 380V 3 Phases
Power(w): According To Your Order,12KW Warranty: 2 Years,24 Months
Control System: DSP/NC Studio Inverter: Fuling Inverter,Delta Inverter
Software: Ucancam / ArtCam / TYPE3

Product Description

2040 3 Axis CNC Wood Carving Machine on Sale with Large Table

With the UT2040AS CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of Unitec unique manufacturing processes that keep high quality affordable.

The UT2040AS features a heavy, all-steel tube frame that ensures durability. It also makes your CNC machine more rigid, which reduces vibration and improves routing quality.  A three-axis motion control system gives you tight control over routing quality for precision and quality cutting your customers will love.

With our UT2372A you can cut a variety of materials, including plastic, wood, foam, and composite materials. While it can work for a wide variety of applications, the most common are for sign making, woodworking, and marine part fabrication.


XYZ Travel Size 2000X4000X220mm
Max Working Size 2000X4000X220mm
Table Size 2450X4200mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type Vacuum table
Vacuum Pump 7.5KW blower pump or 4.8KW air pump
Spindle Power  5.6kw Italy Elte spindle
Spindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor AC servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio or DSP
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2200KG
Overall Dimension 2500X7500X1900mm
