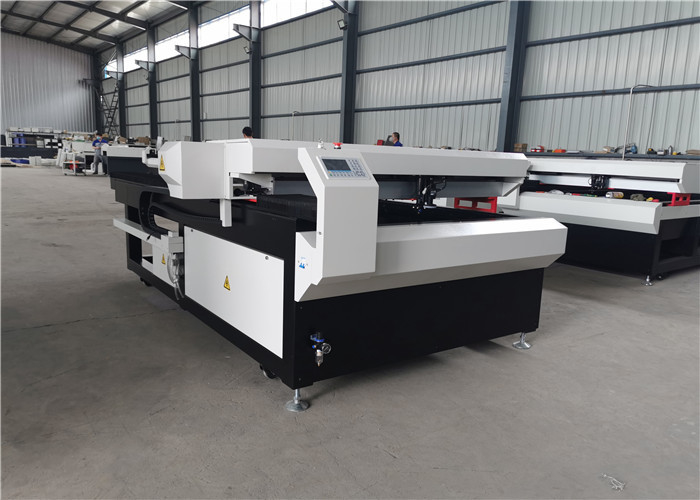

18000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather

18000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather
18000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather

Large Image :  18000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1250mm X 2500mm Laser Tube: 300W SLW Laser Tube; CO2
Motor: Japan Mitsubishi Servo Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: < 40mm(acrylic)
Transmission Type: Taiwan TBI Ball Screw And TBI Linear Guide Repeat Position Accuracy: 0.025mm
High Light:

18000mm/min 1325 Laser Cutting Machine

,

900kgs 1325 Laser Cutting Machine

,

900kgs Leather Laser Engraving Machine

UT1325CL300 1325 Laser Cutting Machine for Paper Plywood MDF Leather PVC Signage Laser Cutter or Engraving



1. With ball screw transmission on one side of it, this machine acquires high precision in metal cutting. Special up and down adjusting laser head, enables it processing well on uneven metal materials.
2. Imported Japanese servo motor, more powerful and stable compares with traditional china made servo motor, cooperating with the imported ball screw, this machine gets additional more precision and flexibility in cutting result than the ordinary model.
3. Large format laser cutting machine cut smooth fine , can meet the fabric , cloth punching and cutting .
4. Stable optical system , with industrial chiller ensure large format cutting . Laser power output is stable , fast and efficient.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



UT1325CL300
Working Size 1250mm X 2500mm
Laser Tube 300W SLW laser tube; CO2
Motor Japan Mitsubishi Servo
Max Engraving Speed 64000mm per min
Max Cutting Speed 18000mm per min
Max Cutting Thickness < 40mm(acrylic)
Transmission Type Taiwan TBI ball screw and TBI linear guide
Repeat Position Accuracy 0.025mm
Working Temperature 0—45 degrees
Power Supply AC 220v ±10%; 50HZ/60HZ
File Format DXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption <1500w
Cooling system China Special Water Chiller
Controller Original China Ruida controller
Weight 900kgs



Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.






18000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather 018000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather 118000mm/min 1325 Laser Cutting Machine For Plywood MDF Leather 2
