300W Stainless Steel Acrylic Mixed Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

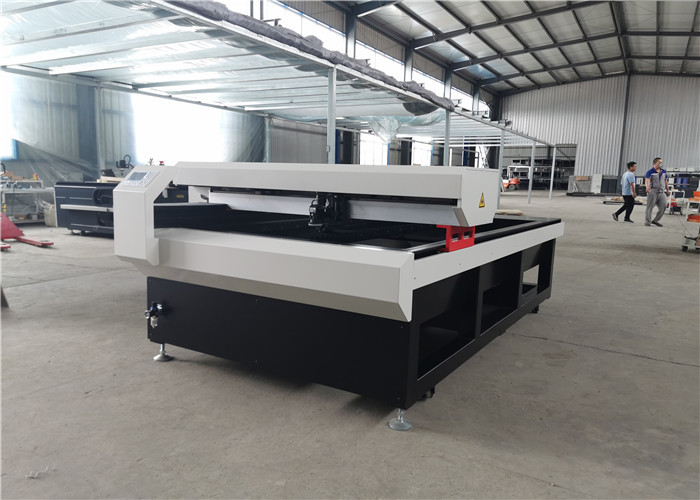

300W Stainless Steel Acrylic Mixed Laser Cutting Machine

300W Stainless Steel Acrylic Mixed Laser Cutting Machine
300W Stainless Steel Acrylic Mixed Laser Cutting Machine

Large Image :  300W Stainless Steel Acrylic Mixed Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1250mm X 2500mm Laser Tube: 300W SLW Laser Tube; CO2
Motor: Japan Mitsubishi Servo Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: < 40mm(acrylic)
Transmission Type: Taiwan TBI Ball Screw And TBI Linear Guide Repeat Position Accuracy: 0.025mm
High Light:

18000mm/min Mixed Laser Cutting Machine

,

1250mm X 2500mm Mixed Laser Cutting Machine

,

900kgs Stainless Steel Laser Cutting Machine

UT1325CL300 1325 Mixed Laser Cutting Machine for Stainless Steel and Acrylic



CO2 laser Engraving / Cutting machine use the international advanced DSP control technology, creating a continuous industry-leading, Fast curve cutting and shortest machining path optimization, greatly improving work efficiency. For engraving the entire automatic light failure compensation to ensure consistent cutting results in different regions, fast cutting software design and high-speed sports buffer function, but also can improve production efficiency, in line with the user's site design requirements.



It is widely used in wood products, paper, leather, fabrics, Plexiglas, epoxy resin, acrylic, wool, plastic, rubber, ceramic tiles, crystal, bamboo products and other non-metallic materials engraving and cutting.CO2 laser engraving machine / cutting machine is consist of the laser source, light guide system, cutting head, control system, machine tool unit and exhaust dust system.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



UT1325CL300
Working Size 1250mm X 2500mm
Laser Tube 300W SLW laser tube; CO2
Motor Japan Mitsubishi Servo
Max Engraving Speed 64000mm per min
Max Cutting Speed 18000mm per min
Max Cutting Thickness < 40mm(acrylic)
Transmission Type Taiwan TBI ball screw and TBI linear guide
Repeat Position Accuracy 0.025mm
Working Temperature 0—45 degrees
Power Supply AC 220v ±10%; 50HZ/60HZ
File Format DXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption <1500w
Cooling system China Special Water Chiller
Controller Original China Ruida controller
Weight 900kgs





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.
