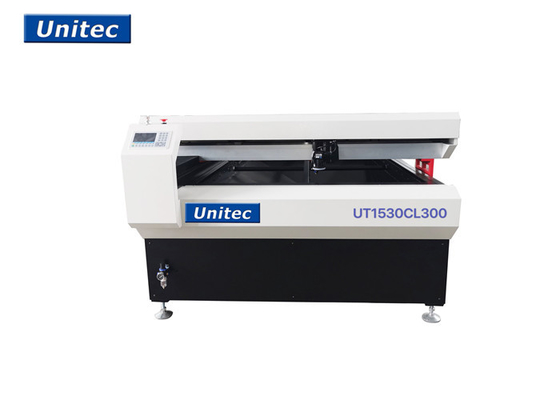

Industrial 300W 18000mm/min Flatbed Laser Cutting Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Industrial 300W 18000mm/min Flatbed Laser Cutting Machine

Industrial 300W 18000mm/min Flatbed Laser Cutting Machine
Industrial 300W 18000mm/min Flatbed Laser Cutting Machine

Large Image :  Industrial 300W 18000mm/min Flatbed Laser Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1250mm X 2500mm Laser Tube: 300W SLW Laser Tube; CO2
Motor: Japan Mitsubishi Servo Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: < 40mm(acrylic)
Transmission Type: Taiwan TBI Ball Screw And TBI Linear Guide Repeat Position Accuracy: 0.025mm
High Light:

900kgs Flatbed Laser Cutting Machine

,

300W Flatbed Laser Cutting Machine

,

18000mm/min Flatbed Laser Cutting Machine

UT1325CL300 CO2 Laser Cutting Machine / Laser Engraving Machine 1325 Flatbed Size With High Laser PowerMachine



1. The double ball screw closedloop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.
2. Standard collocation of 500W fiber laser generator and optional 400W-2000W fiber laser generator ensures low operation and maintenance cost.
3. Open structure is easy and convenient for material loading and unloading.
4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials.
6. Easy operation and low cost.
7. Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



UT1325CL300
Working Size 1250mm X 2500mm
Laser Tube 300W SLW laser tube; CO2
Motor Japan Mitsubishi Servo
Max Engraving Speed 64000mm per min
Max Cutting Speed 18000mm per min
Max Cutting Thickness < 40mm(acrylic)
Transmission Type Taiwan TBI ball screw and TBI linear guide
Repeat Position Accuracy 0.025mm
Working Temperature 0—45 degrees
Power Supply AC 220v ±10%; 50HZ/60HZ
File Format DXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption <1500w
Cooling system China Special Water Chiller
Controller Original China Ruida controller
Weight 900kgs



Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.

Industrial 300W 18000mm/min Flatbed Laser Cutting Machine 0Industrial 300W 18000mm/min Flatbed Laser Cutting Machine 1Industrial 300W 18000mm/min Flatbed Laser Cutting Machine 2Industrial 300W 18000mm/min Flatbed Laser Cutting Machine 3
