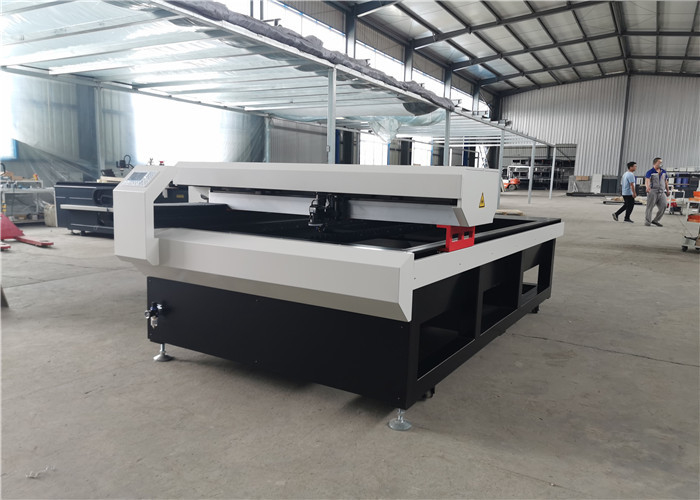

1000W Metal Laser Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT1325CL150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|
|
Detail Information |
|||
| Max Table Loading Weight (kg): | 200 | Max Acrylic Cut Thickness（mm）: | 40 |
|---|---|---|---|
| Max Location Speed (m/min): | 20 | X\Y Location Accuracy（mm/m）: | ±0.025 |
| X\Y Repeat Location Accuracy（mm）: | ±0.005 | Voltage (50/60Hz): | 220V Single Phase |
| Total Power Consumption: | 2KW | Assistant Cutting Air Pressure (MPa): | 0.6 |
| High Light: | UT1325 Metal Laser Cutting Machine,1200×900mm Metal Laser Cutting Machine,Unitec Metal Laser Cutting Machine |
||
Product Description
UT1325CL150 1000W 1325 Mixed CO2 Metal Acrylic Wood MDF Laser Cutting Machine for Non-Metal
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Configure with Taiwan linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured,Z axis are transmitting by high accuracy rolling ball screw.
4. Adopt Japan FUJI AC servo system for all axis, larger power, close-cycle control, high precision positioning, strongertorque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
6. Adopt professional WSX laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise,higher efficiency and better processing quality can be ensured.
7. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
8. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
Applications and Materials
Signmaking Industry: Acrylic, MDF, Wood,etc
| Item | Description | Marks |
| Working Size | X:1200mmY:900mm | Machine body produced by high accuracy machine center |
| Laser Cutting Head | High Accuracy Head with quick loading function | With Double Focus system |
|
Mechanical Driving System |
X/Y Ball Screw | Taiwan TBI |
| X/Y/Z Linear Guide | Taiwan TBI | |
| Special Cool System |
Compressor Overloading Alarm Temperature Overheat Alarm Temerature Control Accuracy ±0.5℃ |
Guangzhou Teyu |
| Motion Control System | Off line Control | Ruida |
| X ,Y Servo Driver | MR-JE-40A | Japan Mitsubishi |
| Z driver | DMD-402A | LEETRO |
| Main Contactor | LS | Imported from Korea |
| Origin Switch | PANASONIC | Japan Panasonic |
| Laser Tube Power (W) | 150W | |
| Laser Beam Quality | M2≤1.1 | |
| Working Size(mm) | 1200×900 | |
| Max Table Loading Weight (kg) | 200 | |
| Max Acrylic Cut Thickness(mm) | 40 | |
| Max Location Speed (m/min) | 20 | |
| XY Location Accuracy(mm/m) | ±0.025 | |
| XY Repeat Location Accuracy(mm) | ±0.005 | |
|
Travel Size
|
X-(mm) | 1200 |
| Y-(mm) | 900 | |
| Z-(mm) | 40 | |
| Voltage (50/60Hz) | 220V single phase | |
| Total Power Consumption | 2KW | |
| Assistant Cutting Air Pressure (MPa) | 0.6 | |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2. Driven by Taiwan TBI ball screw with TBI linear Guide
3. Japan Mitsubishi Servo motor and driver
4. Reliable CO2 glass laser tube
5. Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.
