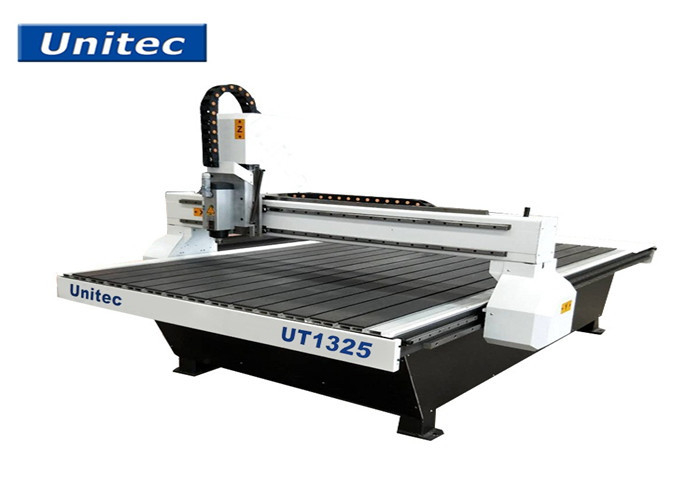

4x8ft Sign Making CNC Router

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

4x8ft Sign Making CNC Router

4x8ft Sign Making CNC Router
4x8ft Sign Making CNC Router

Large Image :  4x8ft Sign Making CNC Router

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1300mm X 2500mm Z Travel Height: 150mm
Spindle: 6KW HSD Or 5.6KW ELTE Table: T Slot
Motor: Stepper Controller: DSP Or Ncstudio
High Light:

12000mm/min Sign Making CNC Router

,

4x8ft Sign Making CNC Router

,

4FTX8FT Sign Making CNC Router

4x8 ft ACP ACM CNC Router machine



1. Mode 1325 machine is specially designed for woodworking, metal and advertisement.It has high precision, fast speed, cost-effective.
2. By the way of seamless welding and vibrating treatment, the lathe bed steel structure is firm, durable, strength steel and non-deformation.
3. Computer cabinets and Weihong control system make the machine have good stability and high reliability.
4. Using automatic lubrication system, it's convenient for maintenance.
5. Owns more functions of power-off restoration, continuation on break point, working time anticipation etc.
6. XYZ axis adopt high-precision linear and square rail from Yintai in Taiwan.High-precision and durable no-learance rolling ball screws for Z axis, it's imported from Yintai brand in Taiwan, rack
7.Drive for X Y axis, high-precision, faster and better efficiency.





XYZ Travel Size

1320X2520X150mm



Max Working Size

1300X2500X120mm
Table Size 1400X2500mm
Transmission Type XY/Z XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T slot
Spindle Power

3KW/5.6EL 3KW China water cool

5.6KW Italy Elte spindle

Spindle Speed 24000/18000rpm
  Leyu Oscillating Head + CCD camera



Max Travel Speed

14000mm/min



Max Processing Speed

12000mm/min
Motor

/

Stepper or Servo

Work Voltage AC380V 50HZ



Controller System

Leyu Controller



Processing Accuracy

0.05mm



Repeat Positioning Accuracy

0.01mm
File Format G/PLT; G code or PLT
Overall Weight 1100KG



Overall Dimension

1950X3000X1600mm



Features:

1. X Y use taiwan square rails. and 20mm diameter, C7 precision ballscrew made from Taiwan.

make these model machine working very stable and more durable.

2. Iron casting table body insure machine movement of working more stable and low noisy.

3. mach3 controller with usb port. you can use your laptop to control machine

Application:

Such as seal, packing, scutcheon and pane making, decorating, art and craft, architecture model, souvenir,badge, electric circuitry and carpentry field.

Suitable for Materials:

Engrave & cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, PCB Aluminum, brass, steel.



4x8ft Sign Making CNC Router 04x8ft Sign Making CNC Router 1

4x8ft Sign Making CNC Router 24x8ft Sign Making CNC Router 34x8ft Sign Making CNC Router 44x8ft Sign Making CNC Router 5
