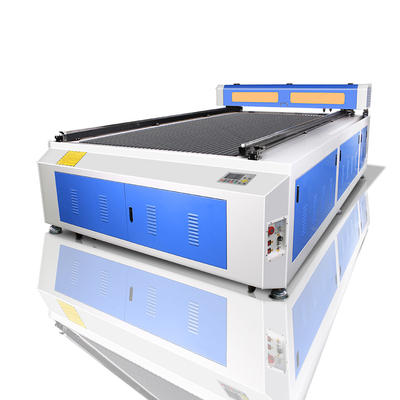

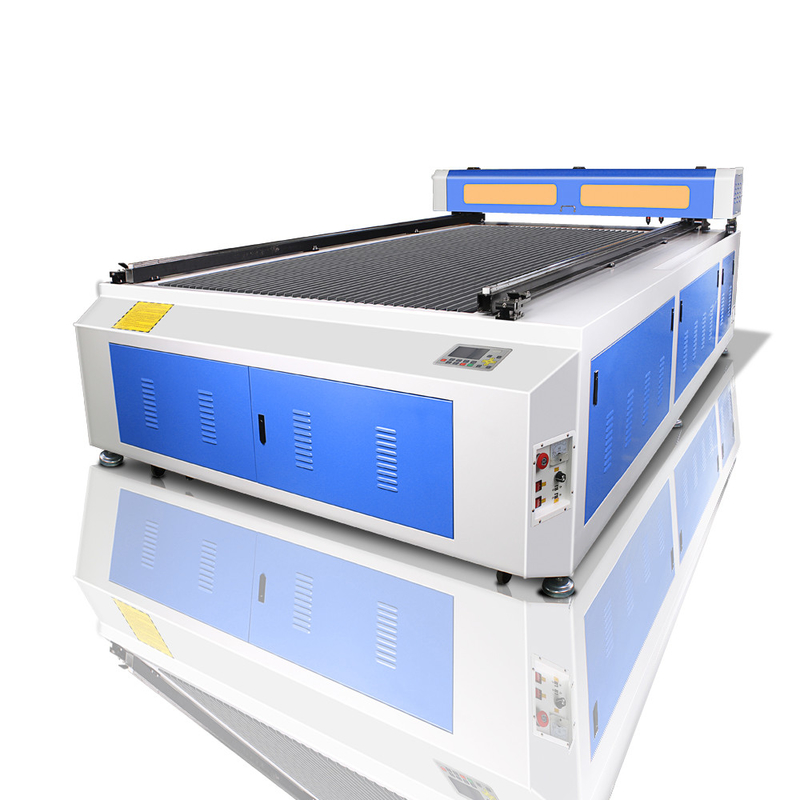

130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry

130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry
130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry

Large Image :  130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: CE UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Working Size: 1300mmX2500mm Motor: Stepper Motor
Transmission Type: Belt And Linear Guide Cooling System: China Special Water Chiller; CW5000
Laser Tube: 130W Laser Tube; CO2 Max Engraving Speed: 64000mm Per Min
Max Cutting Speed: 18000mm Per Min Max Cutting Thickness: <30mm Acrylic
High Light:

1326 CO2 Laser Acrylic Cutter

,

130W CO2 Laser Cutter

,

CO2 Laser Cutting Machine For Industry

UT1325CL150 Laser Machine





Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2. Driven by strong belt and linear guide
3. Stepper motor
4. Reliable CO2 glass laser tube
5. Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.



Buying Guide

1. Consult:

We will recommend the most suitable CNC laser engraving machine to you after being informed by your requirements.

2. Quotation:

We will offer you with our detail quotation according to the consulted laser machine. You will the most suitable CNC laser cutting machine specifications, the best CNC laser cutting machine accessories and the affordable CNC laser cutter price.

3. Process Evaluation:

Both sides carefully evaluate and discuss all the details of the order to exclude any misunderstanding.

4. Placing an order:

If you have no doubts, we will send the PI (Proforma Invoice) to you, and then we will sign a contract with you.

5. Production:

We will arrange the CNC laser cutter production as soon as receiving your signed sales contract and deposit. The latest news about production will be updated and informed to the CNC laser engraver buyer during the production.

6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete CNC laser cutter will be tested to make sure they can work very well before out of factory.

7. Delivery:

We will arrange the delivery as the terms in the contract after the confirmation by the buyer.

8. Custom Clearance:

We will supply and deliver all the necessary shipping documents to the buyer and ensure a smooth customs clearance.

9. Support and Service:

We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have door-to-door service in some areas.



The future development of CNC laser cutting machine industry, from the perspective of applicable industries and enterprises, the key development scope of CNC laser cutting machine will be around the following aspects:



1. High-speed, precision CNC lathe, turning center and compound processing machines with four-axis or above linkage. Mainly meet the needs of industries such as aerospace, aviation, instruments, meters, electronic information and biological engineering.

2. High-speed, high-precision CNC milling and boring machine and high-speed, high-precision vertical and horizontal machining center. Mainly meet the processing requirements of large-scale complex structural brackets, shells, boxes, light metal material parts and precision parts of automobile engine cylinder heads and aerospace, high-tech industries.

3. Heavy-duty and super-heavy-duty CNC machine tools: CNC floor milling and boring machines, heavy-duty CNC gantry boring and milling machines and gantry machining centers, heavy-duty CNC horizontal lathes and vertical lathes, CNC heavy-duty hobbing machines, etc. These products meet energy, aerospace and military , The main engine manufacturing of ships, heavy machinery manufacturing, large mold processing, steam turbine cylinder block and other industry parts processing needs.

4. CNC grinders: CNC ultra-precision grinders, high-speed high-precision crankshaft grinders and camshaft grinders, various types of high-precision high-speed special grinders, etc., to meet the needs of precision ultra-precision machining.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



UT1530CL150X2 Laser Machine
Working Size 1300mmX2500mm
Laser Tube 150W laser tube; CO2
Motor Stepper motor
Transmission Type BELT
Cooling system China Special Water Chiller; CW5000
Max Engraving Speed 64000mm per min
Max Cutting Speed 18000mm per min
Max Cutting Thickness <40mm acrylic
Repeat Position Accuracy 0.025mm
Working Temperature 0—45 degrees
Power Supply AC 220v ±10%; 50HZ/60HZ
File Format DXF,BMP,GIF,JPEG,TGA,TIFF,PLT,CDR,DWG,
Power Consumption <1500w
Controller Original China Leetro controller
Voltage 220v/ 50HZ/single phases
Weight 900kgs

B



2 heads:





2 laser heads:



150w laser tube

130W 1326 CO2 Laser Cutting Machine Acrylic Cutter For Large Industry 0
