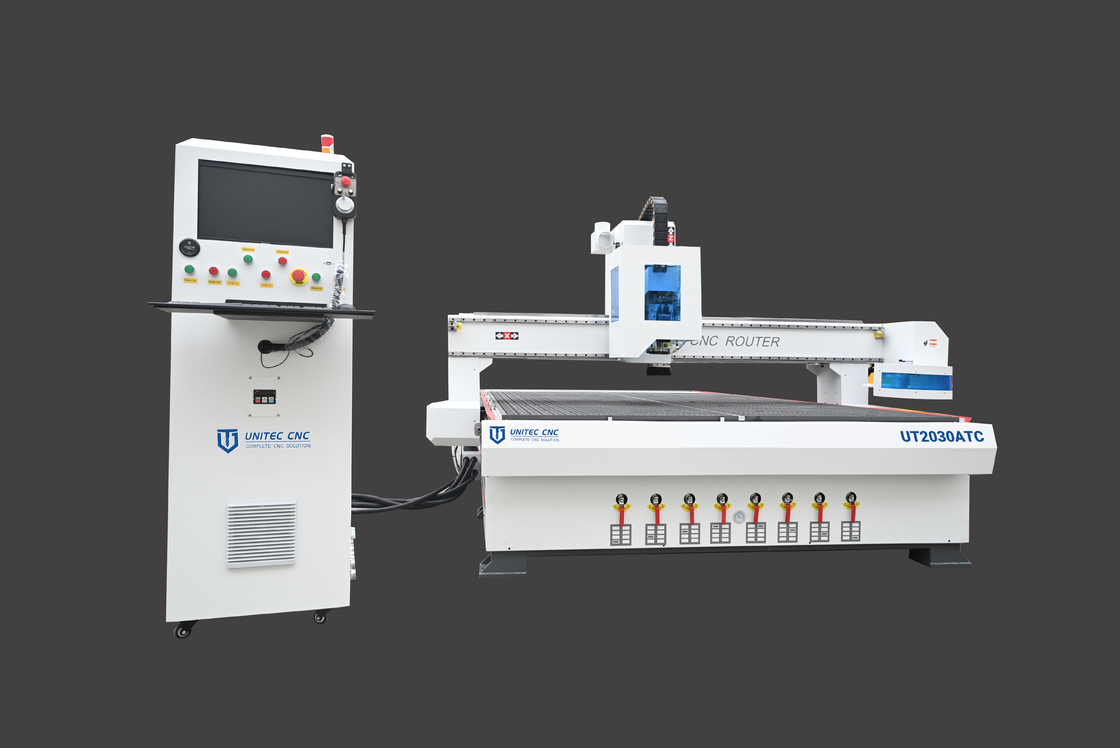

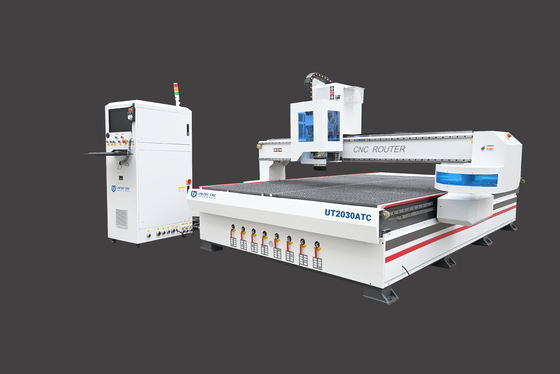

Carrousel ATC CNC Router Machine 2m X 3m DSP B57
Product Details:
| Place of Origin: | China |
| Brand Name: | Unitec |
| Certification: | CE |
| Model Number: | UT2030ATC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Steel pipe and plywood |
| Supply Ability: | 100 per month |
|
Detail Information |
|||
| Table: | Vacuum +T Slot | Motor: | Taiwan Delta Servo Motor |
|---|---|---|---|
| Tool Changer: | Carrousel ATC | Controller: | Ncstudio |
| Certification: | CE ISO | Condition: | New |
| Weight: | 2000kg | Cnc Or Not: | CNC |
| Warranty: | 2 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
| Voltage: | 220V/380V | Control System: | Ncstudio,Syntec,DSP B57 |
| Working Area: | 1300x2500mm/1500x3000mm/1800x3600mm/2000x3000mm/2000x4000mm | Spindle Power: | 9.0kw,9kw Italy HSD Air Cooling Spindle,9KW |
| Inverter: | DELTA | Product Name: | Cnc Wood Router Machine |
| Application: | Woodworking | Software: | Ucancam / ArtCam/TYPE3,UCANCAM,artcam /type 3 |
| Spindle Speed: | 0-24000RMP | ||
| High Light: | Carrousel ATC CNC Router Machine,2m X 3m ATC CNC Router Machine,DSP B57 ATC CNC Router Machine |
||
Product Description
20000mm/min 2030 ATC CNC Router Machine
Product Application
Furniture Decoration industry:A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
Wood Products Processing: Sewing machine table,electrical counter table, sports equipment.
Artwork : Photo Frame, jewelry box.
Musical instrument industry : instrument three-dimensional surface engraving, shape cutting.
Main Features
1. whole lathe bed is in steel structure of high stability.
2. Rocks and gear transmission with high speed motors keeps smooth movement in fast and accuracy .
3. Breakpoint restoring function enable the machine continue to work after the sudden stop,such as accident ,tool breaking.
4. Wide software compatibility with processing files generated by Type3,ArtCAM,Artcut,AutoCAD,JDPaint etc.CAD/CAM design software.
5. Auto lubrication system lubticating tracks automatically,ensures machine’s precision and service time.
Applications and Material
Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
| Working Size | 2000X3000X220mm |
| Table Size | 2100X3100mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Linear guide |
| Table Type | Vacuum |
| Vacuum pump | 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9KW Italy HSD ATC Spindle |
| Spindle Speed | 24000rpm |
| Tool changer | Carrousel ATC with 12 tools positions |
| Max Travel Speed | 30000mm/min |
| Max Working Speed | 20000mm/min |
| Motor | Taiwan Delta AC Servo Motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio / Syntec |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G Code/PLT Code |
| Overall Weight | 2200KG |
| Overall Dimension | 2250X3500X1900mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
