100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

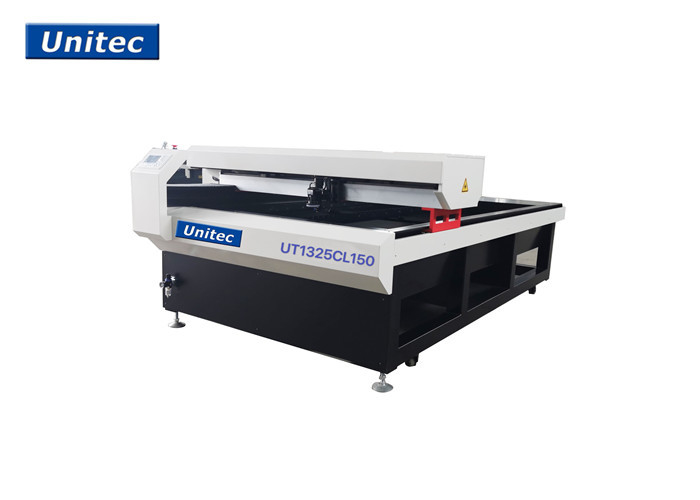

100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth

100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth
100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth

Large Image :  100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1325CL150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
Max Table Loading Weight (kg): 200 Max Acrylic Cut Thickness(mm): 40
Max Location Speed (m/min): 20 X\Y Location Accuracy(mm/m): ±0.025
X\Y Repeat Location Accuracy(mm): ±0.005 Voltage (50/60Hz): 220V Single Phase
Total Power Consumption: 2KW Assistant Cutting Air Pressure (MPa): 0.6
High Light:

100W CO2 Laser Cutting Machine

,

130W CO2 Laser Cutting Machine

,

150W CO2 Laser Cutting Machine

UT1325CL150 100W 130W 150W CO2 Laser MDF Engraving Machine Laser Wood Paper Fabric Cloth



1390 is the most common universal laser engraving machine in the industry. It adopts international advanced DSP control technology, leading the continuous continuous, fast curve cutting function and the shortest processing path optimization function in the first venture, greatly improving work efficiency. Automatic light compensation for the entire process of engraving ensures consistent cutting results in different areas, fast cutting control software design and buffering function during high-speed motion, which can improve production efficiency. The latest software seamlessly interfaces with various graphic software such as AUTOCAD and CORELDRAW, and directly outputs the original image, which is more suitable for the user's on-site design requirements. Advanced color, free to define the engraving order, can easily achieve all or part of the one-time output. The first domestic use of USB port to transfer data, and with built-in large-capacity memory, greatly improving work speed and efficiency.



Applications and Materials

Signmaking Industry: Acrylic, MDF, Wood,etc



Item Description Marks
Working Size X:1200mmY:900mm Machine body produced by high accuracy machine center
Laser Cutting Head High Accuracy Head with quick loading function With Double Focus system



Mechanical Driving System

X/Y Ball Screw Taiwan TBI
X/Y/Z Linear Guide Taiwan TBI
Special Cool System

Compressor Overloading Alarm

Temperature Overheat Alarm

Temerature Control Accuracy ±0.5℃



Guangzhou Teyu

Motion Control System Off line Control Ruida
X ,Y Servo Driver MR-JE-40A Japan Mitsubishi
Z driver DMD-402A LEETRO
Main Contactor LS Imported from Korea
Origin Switch PANASONIC Japan Panasonic





Laser Tube Power (W) 150W
Laser Beam Quality M2≤1.1
Working Size(mm) 1200×900
Max Table Loading Weight (kg) 200
Max Acrylic Cut Thickness(mm) 40
Max Location Speed (m/min) 20
XY Location Accuracy(mm/m) ±0.025
XY Repeat Location Accuracy(mm) ±0.005



Travel Size



X-(mm) 1200
Y-(mm) 900
Z-(mm) 40
Voltage (50/60Hz) 220V single phase
Total Power Consumption 2KW
Assistant Cutting Air Pressure (MPa) 0.6





Highlights
1.  Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine   running stability
2.  Driven by Taiwan TBI ball screw with TBI linear Guide
3.  Japan Mitsubishi Servo motor and driver
4.  Reliable CO2 glass laser tube
5.  Controller with multi language options: English, Italy, Germany, France, Spanish, Arabic,etc.






100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth 0100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth 1100W 130W 150W CO2 Laser Cutting Machine For Wood Fabric Cloth 2
