Unitec UT1530P CNC Router Woodworking Engraving Machine

China Nanjing Unitec Technology Co., Ltd. certification
I'm Online Chat Now

Unitec UT1530P CNC Router Woodworking Engraving Machine

Unitec UT1530P CNC Router Woodworking Engraving Machine
Unitec UT1530P CNC Router Woodworking Engraving Machine

Large Image :  Unitec UT1530P CNC Router Woodworking Engraving Machine

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT1530P

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Detailed Product Description
XYZ Travel Size: 1550X3050X850mm Max Working Size: 1500X3000X800mm
Table Size: 1600X3000mm Transmission Type: XY Rack/Z Ball Screw
Guide Rail: Linear Guide Table Type: T-Slot
Spindle Power: China Air Cool Spindle Or 5.6KW Italy Air Cool Spindle Pindle Speed: 18000rpm
High Light:

20000mm/min Foam Carving Machine

,

UT1530P Woodworking Engraving Machine

,

Unitec Woodworking Engraving Machine

UT1530P 1530 CNC Router Woodworking Engraving Machine Styrofoam Foam Carving Machine For Mold Making



1. Imported four row steel ball bearing, wide linear guide, self-lubricating block. Engraving direction with equal force,ensuring the mechanical precision and intensity.
2. Z axis stroke size can be 1m. wide processing size,Suitable for greater&thicker materials.
3. Intelligent processing cross-border protection, Preventing body collision due to processing format reach out working size.
4. Multi -function controlling , fot processing speed.travelling speed,and cutting speed.Improving much more quality and efficiency.





Applications and Materials

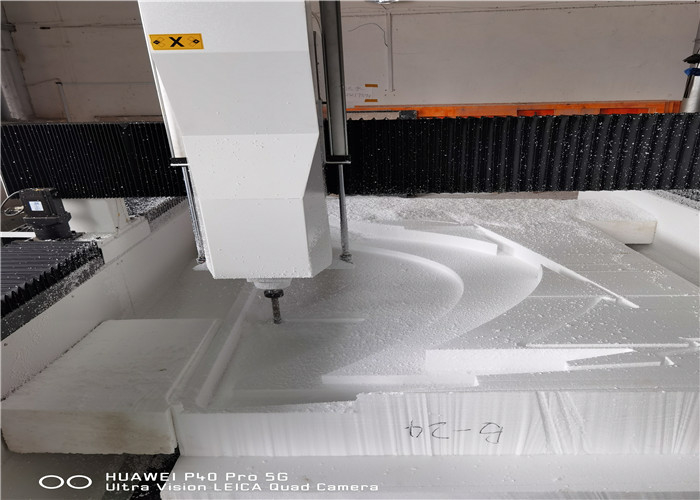

  • Polyolon (foam) Area: foam processing of automotive stamping dies, casting of wooden models, automotive interior, engineering plastic materials and other non-metal processing.
  • Wood mold Area: casting wood mold, automobile inspection tool processing, automobile interior decoration, engineering plastic materials and other non-metallic processingWoodworking
  • Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel


Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance

6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.



XYZ Travel Size 1550X3050X850mm
Max Working Size 1500X3000X800mm
Table Size 1600X3000mm
Transmission Type XY rack/Z ball screw
Guide Rail Linear Guide
Table Type T-Slot
Spindle Power China air cool spindle or 5.6KW Italy Air cool spindle
pindle Speed 18000rpm
Max Travel Speed 30000mm/min
Max Work Speed 20000mm/min
Motor servo motor
Work Voltage AC380V 50HZ
Controller System Ncstudio/ShanL
Processing Accuracy ±0.05mm
Repeat Positioning Accuracy ±0.01mm
File Format G code or PLT
Overall Weight 2000KG
Overall Dimension 2200X3500X2400mm



Unitec UT1530P CNC Router Woodworking Engraving Machine 0Unitec UT1530P CNC Router Woodworking Engraving Machine 1Unitec UT1530P CNC Router Woodworking Engraving Machine 2Unitec UT1530P CNC Router Woodworking Engraving Machine 3Unitec UT1530P CNC Router Woodworking Engraving Machine 4
