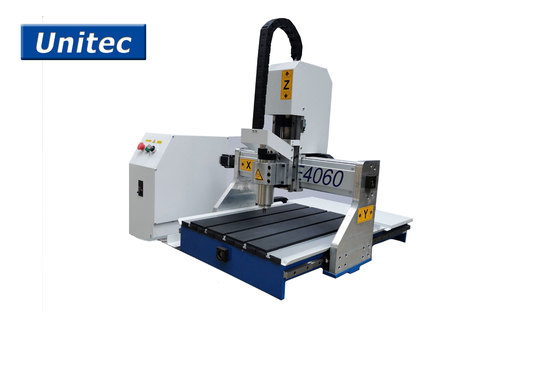

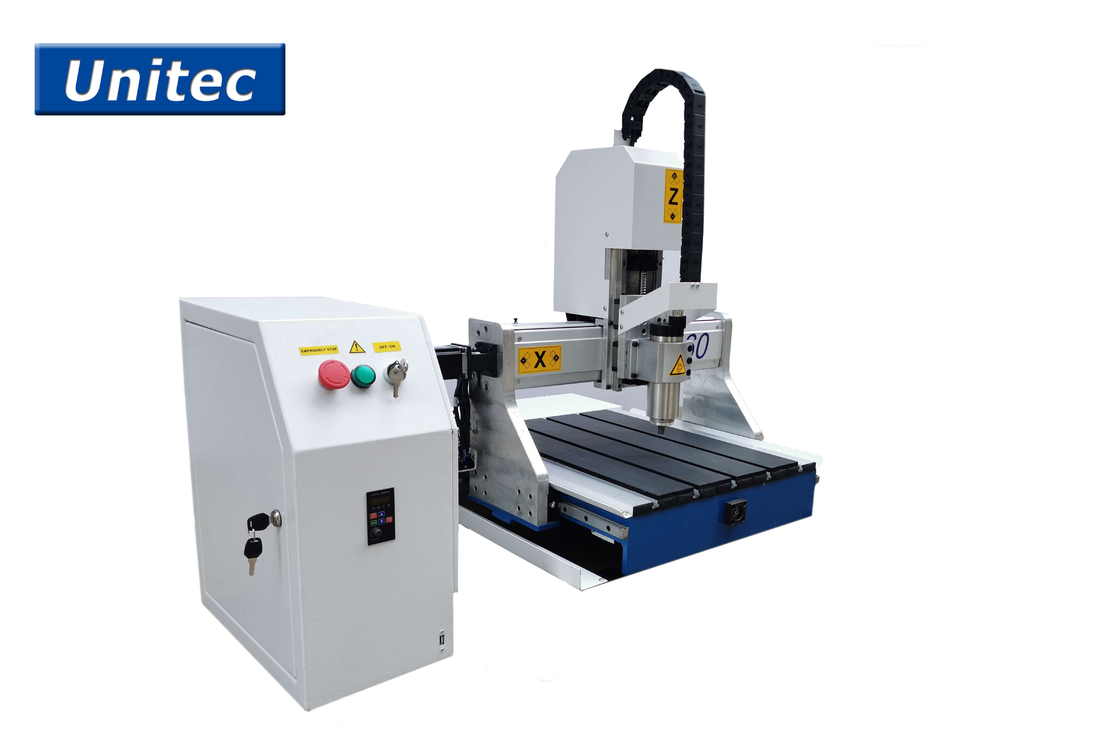

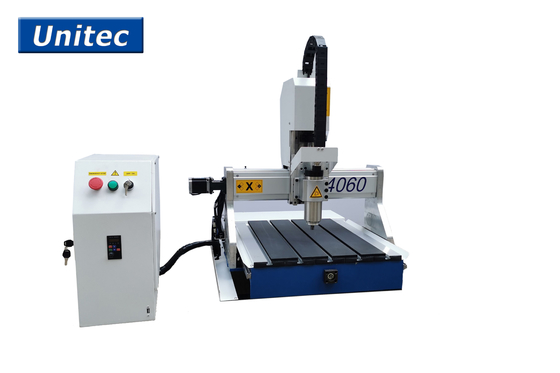

24000rpm UT4060S 800W Mini CNC Router Machine For 3D Job

24000rpm UT4060S 800W Mini CNC Router Machine For 3D Job

Product Details:

Place of Origin: China
Brand Name: Unitec
Certification: CE
Model Number: UT4060S

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Packaging Details: plywood crate
Get Best Price Contact Now

Detail Information

XYZ Travel Size: 400X400X180mm Max Working Size: 400X400X180mm
Table Size: 400x900mm Transmission Type: XYZ Ball Screw
Guide Rail: Linear Guide Table Type: Steel
Spindle Power: 800W China Water Cool Spindle Spindle Speed: 24000rpm
High Light:

800W Desktop CNC Engraver

,

UT4060S Mini CNC Router Machine

,

24000 Rpm Mini CNC Router Machine

Product Description

The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper.

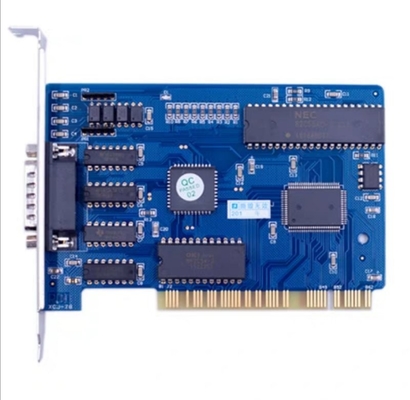

Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.



Applications and Materials

Industry Area: Aluminum panel,copper,soft metal,engineering plastic,epikote,ABS panel



Suitable work

Mini CNC Router has a wide range of application,Engrave and cut on Acrylic sheet, ABS double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB Aluminum sheet etc. for cutting and engraving furniture, wood door, cupboard door and window, beside cabinet,ect., Circuit board, the LED display, 3D engraving/ cutting.such as cello, violin panel and head,guitar,



Main Features--multifunction cnc router

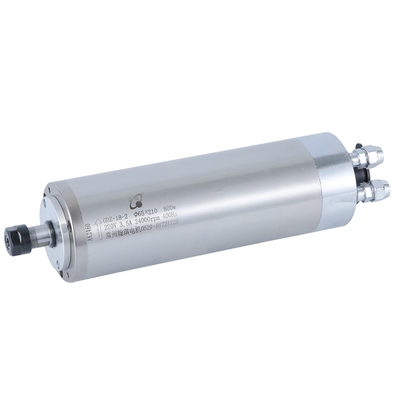

♠ Brand water cooled spindle, suitable to process metal materials and non-metal materials ♠ 57 type high current lengthen motor, high torque; with independent motor base, the operation is more stable ♠ Independent drives

♠ Imported TBI 1605 ball screw
♠ Double stainless steel polished rod
♠ Mach3 usb control system, can be controlled by desktop computer, laptop; or dsp control system, offline version, no computer for controlling
♠ Machine frames are 6061 aluminum alloy, precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized



XYZ Travel Size400X400X180mm
Max Working Size400X400X180mm
Table Size400x900mm
Transmission TypeXYZ ball screw

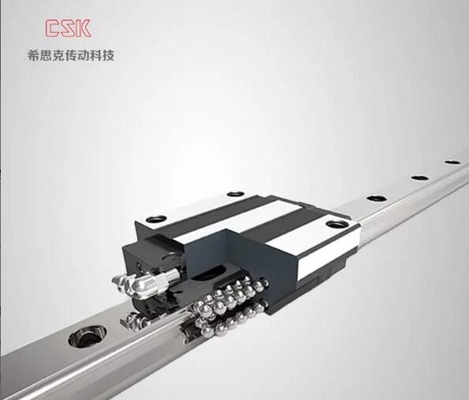

Guide RailLinear Guide
Table TypeSteel
Spindle Power800W china water cool spindle
Spindle Speed24000rpm
Max Travel Speed7000mm/min
Max Work Speed5000mm/min
MotorBujinstepper motor
Work VoltageAC 220V 50HZ
Controller SystemNcstudio or DSP
Processing Accuracy±0.05mm
Repeat Positioning Accuracy±0.01mm
File FormatG/PLT G code or PLT
Overall Weight200KG



High quality machine body
The machine body is 6061 aluminum alloy, precision processed by imported CNC machining center, the panel is 6063 aluminum profile, and the surface is anodized. Ordinary aluminum sheets or aluminum profiles and castings are not comparable.



Independent drives
Equipped with independent drive to ensure the high stability and fast working speed of the machine and effectively improve the accuracy

  • The gantry frame structure is adopted, the beam is fixed, and the table top is movable. The optimized design of the gantry and the cross beam and the reliable connection with the workbench form a frame structure with good rigidity and reliability, and a heavy-duty welded structure to ensure the best strength and rigidity.
  • The table surface adopts steel structure T-slot, with water cooling circulation system, which effectively solves the cooling of workpiece and tool.
  • Fast processing speed and high efficiency. The processing quality is fine, the edge contour is clear, and the bottom surface is flat and smooth.
  • Safety assurance, strict compliance with CE electrical standards for circuit design and production, all moving parts have safe and reliable protection devices.
  1. Wood furniture industry: Doors, Cabinets, Tables, Chairs. Wave plate, fine pattem, antique fumiture, doors, interior doors, sofa legs, headboards and
  2. Advertising industry: Engraving and cutting various labels and numbe board, billboard-
  3. Artwork and Decoration: Wood crafts, gift box, jewelry box
  4. Art craft: engraving characters of any languages
